ASCO 8210P095-24/120V 8210P095-24/120V

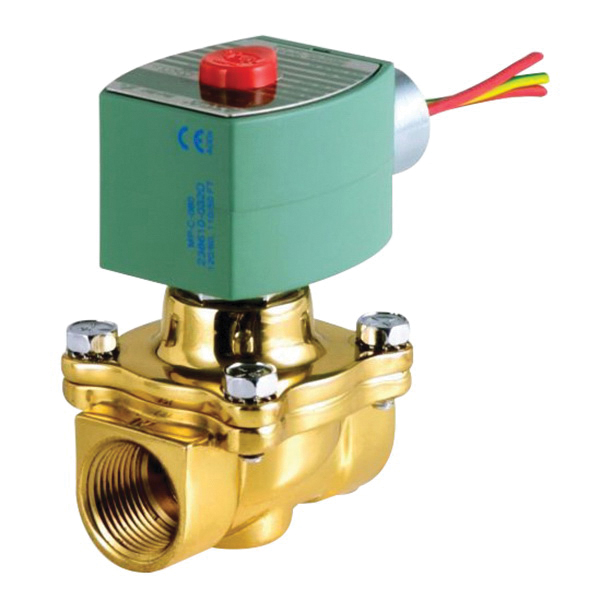

ASCO 8210 8210P095-24/120V Solenoid Valve

Asco RedHat 8210 8210P095-24/120V Solenoid Valve, 3/4 in Nominal, NPT Connection, 2 -Port/Way, 180 deg F AC Fluid

Asco RedHat 8210 8210P095-24/120V Solenoid Valve, 3/4 in Nominal, NPT Connection, 2 -Port/Way, 180 deg F AC Fluid 8210P095-24/120V

Asco RedHat Solenoid Valve, Series: 8210, 3/4 in Nominal, NPT, NC, 0 to 150 psi Air to Inert Gas and Water AC Differential, Media: Water, 3/4 in Orifice, Coil Insulation Class: H, 2 Positions, 2 Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR Seal, 180 deg F AC Fluid, 2.81 in L x 2.28 in W

Body Material      :      Brass
Coil Insulation Class      :      H
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2.81 in L x 2.28 in W
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Media      :      Water
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2
Number of Positions      :      2
Orifice Size      :      3/4 in
Pressure Rating      :      0 to 150 psi Air to Inert Gas and Water AC Differential
Seal Material      :      NBR
Series      :      8210
Temperature Rating      :      180 deg F AC Fluid
  • Control of air, water, light oil and non-corrosive media
  • Water tight no junction box
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Asco_8210P095_24_120V_Catalog.pdf
  • pdfSpecification Sheet https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Asco_8210P095_24_120V_Specification_Sheet.pdf
