ASCO 8210G002 8210G002

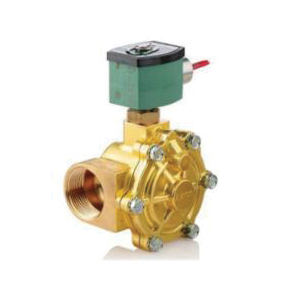

ASCO 8210G002 Pilot Solenoid Valve

Asco 210 Series 8210G002 General Service Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Way-Port/Way, 150/180 deg F

Asco 210 Series 8210G002 General Service Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Way-Port/Way, 150/180 deg F 8210G002

The ASCO series 210 is a line of economical, high flow solenoid valves for liquid, corrosive and air/inert gas service. With a wide range of pressure ratings, sizes and resilient materials, the ultra-reliable 2-way valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment and industrial water control.
ASCO General Service Solenoid Valve, Series: 210 Series, 1/2 in Nominal, NPT Connection, NC, 5 to 200 psi Differential Air/Inert Gas, 5 to 150 psi Differential Water, 5 to 135 psi Differential Light Oil, Air, Inert Gas, Light Oil, Water Media, Pilot Operated Actuator, 5/8 in Orifice, 2-3/4 in Inlet to Outlet Length, 2.8 in Top to Inlet Center, 120 VAC, 6.1 W, 60 Hz, F Coil Insulation Class, 2 Positions, 2-Way, Type 1/2/3/3S/4/4X Enclosure, Brass Body, NBR/PTFE Seat, NBR/PTFE Seal, NBR/PTFE Disc, 150/180 deg F, 2.75 in L x 2.28 in W x 3.38 in H

Actuator Type      :      Pilot Operated
Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2.75 in L x 2.28 in W x 3.38 in H
Disc Material      :      NBR/PTFE
Enclosure Type      :      Type 1/2/3/3S/4/4X
Frequency Rating      :      60 Hz
Inlet to Outlet Length      :      2-3/4 in
Media      :      Air, Inert Gas, Light Oil, Water
Nominal Size      :      1/2 in
Number of Ports/Ways      :      2-Way
Number of Positions      :      2
Orifice Size      :      5/8 in
Power Rating      :      6.1 W
Pressure Rating      :      5 to 200 psi Differential Air/Inert Gas, 5 to 150 psi Differential Water, 5 to 135 psi Differential Light Oil
Seal Material      :      NBR/PTFE
Seat Material      :      NBR/PTFE
Series      :      210 Series
Temperature Rating      :      150/180 deg F
Top to Inlet Center      :      2.8 in
Voltage Rating      :      120 VAC
  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High flow valves for liquid, corrosive and air/inert gas service
  • Valves can be specified for hot water service to 210 deg F for in laundry, boiler and heat exchanger applications
  • Ideal for high pressure control applications in commercial and industrial gas burners
  • Use to control liquid petroleum gases (propane) in grain dryers, incinerators and space heaters
  • Diaphragm construction
  • Closed when de-energized
  • PA disc holder
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel spring
  • Copper shading coil
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G002_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G002_Specification_Sheet.pdf
