ASCO 8210G033AC110/50D 8210G033AC110/50D

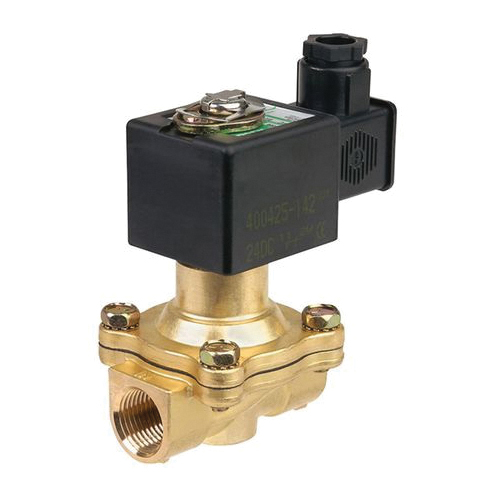

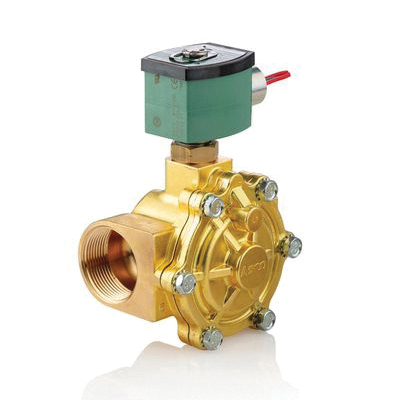

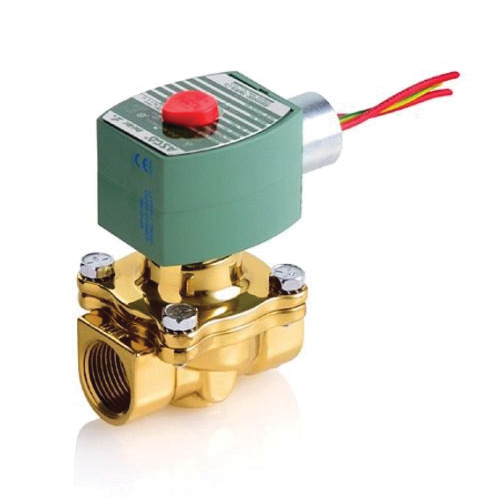

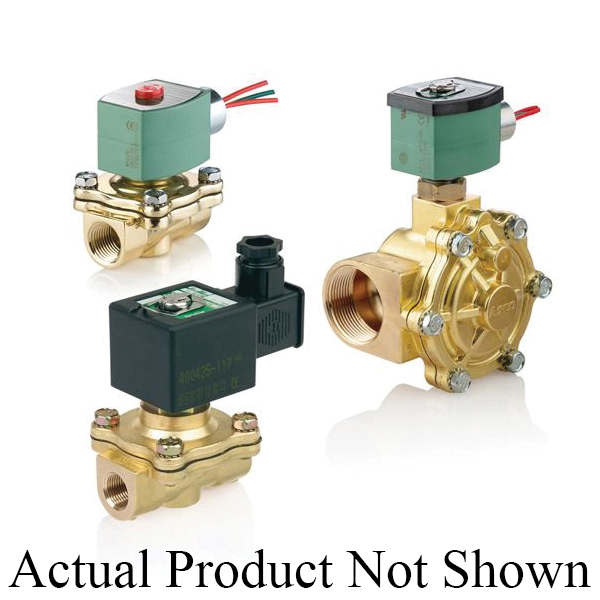

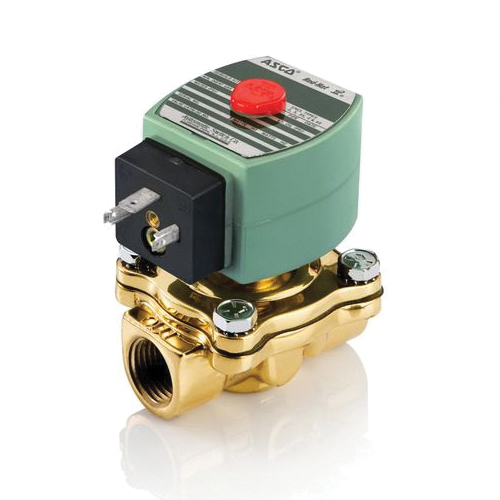

ASCO 8210G033AC110/50D Solenoid Valve

Asco 8210G033AC110/50D Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way, 150 psi Pressure, Brass Body

Asco 8210G033AC110/50D Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way, 150 psi Pressure, Brass Body 8210G033AC110/50D

The ASCO 210 series is a line of economical, high flow solenoid valves for liquid, corrosive and air/inert gas service. With a wide range of pressure ratings, sizes and resilient materials, the ultra-reliable two-way valves provide long service life and low internal leakage. Industrial application include car wash equipment, air compressors, pumps, laundry equipment and industrial water control.
ASCO Solenoid Valve, Series: 8210 Series, 3/4 in Nominal, NPT Connection, 1NO, NPT End, 150 psi, Air, Inert Gas, Water Media, Pilot Actuator, 5/8 in Orifice, 2-3/4 in Inlet to Outlet Length, 3.79 in Top to Inlet Center, 110 VAC, 10.1 W, 50 Hz, Class F Coil Insulation Class, Copper Coil, 2 Positions, 2-Way, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Brass Body, NBR/PTFE Seat, NBR/PTFE Seal, NBR/PTFE Disc, 302 Stainless Steel Trim, NBR/PTFE Softgoods, 32 to 125 deg F, 4.35 in H x 2.28 in W, Additional Information: 3 Cv Flow Coefficient

Actuator Type      :      Pilot
Additional Information      :      3 Cv Flow Coefficient
Body Material      :      Brass
Coil Insulation Class      :      Class F
Coil Type      :      Copper
Configuration      :      1NO
Connection Type      :      NPT
Dimensions      :      4.35 in H x 2.28 in W
Disc Material      :      NBR/PTFE
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
End Type      :      NPT
Frequency Rating      :      50 Hz
Inlet to Outlet Length      :      2-3/4 in
Media      :      Air, Inert Gas, Water
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2-Way
Number of Positions      :      2
Orifice Size      :      5/8 in
Power Rating      :      10.1 W
Pressure Rating      :      150 psi
Seal Material      :      NBR/PTFE
Seat Material      :      NBR/PTFE
Series      :      8210 Series
Softgoods Material      :      NBR/PTFE
Temperature Rating      :      32 to 125 deg F
Top to Inlet Center      :      3.79 in
Trim Material      :      302 Stainless Steel
Voltage Rating      :      110 VAC
  • Low temperature models control cryogenic fluids, including liquid nitrogen (-320 deg F/-194 deg C), liquid argon (-303 deg F/-184 deg C) and liquid oxygen (-297 deg F/-181 deg C)
  • Valves can be specified for hot water service to 210 deg F/95 deg C for in laundry, boiler and heat exchanger application
  • Ideal for high pressure control application in commercial and industrial gas burner
  • Use to control liquid petroleum gases (propane) in grain dryers, incinerators and space heaters
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G033AC110_50D_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G033AC110_50D_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G033AC110_50D_Specification_Sheet.pdf
