ASCO 8210G035 8210G035

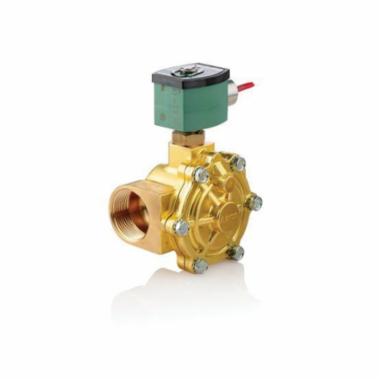

ASCO 8210G035 Pilot Solenoid Valve

Asco 8210G035 Pilot Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way-Port/Way, 0 to 150 psi Pressure, 180 deg F

Asco 8210G035 Pilot Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way-Port/Way, 0 to 150 psi Pressure, 180 deg F 8210G035

The ASCO series 210 is a line of economical, high-flow solenoid valves for liquid, corrosive and air/inert gas service. With a wide range of pressure ratings, sizes and resilient materials, the ultra-reliable 2-way valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment and industrial water control.
ASCO Pilot Solenoid Valve, Series: 210, 3/4 in Nominal, Connection Type: NPT, Configuration: NO, 0 to 150 psi, Air-Inert Gas, Light Oil, Water Media, 3/4 in Orifice, 2.81 in L Inlet to Outlet, 3.94 in Top to Inlet Center, 120 V, 10.1/11.6 W Power, 60 Hz, Coil Insulation Class: F, Number of Positions: 2, Number of Ports/Ways: 2-Way, IP66, NEMA 1/2/3/3S/4/4X, RedHat Watertight Enclosure, Brass Body, NBR Seat, NBR/PTFE Seal, 180 deg F, 4.64 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NO
Connection Type      :      NPT
Dimensions      :      4.64 in H
Enclosure Type      :      IP66, NEMA 1/2/3/3S/4/4X, RedHat Watertight
Frequency Rating      :      60 Hz
Inlet to Outlet Length      :      2.81 in
Media      :      Air-Inert Gas, Light Oil, Water
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2-Way
Number of Positions      :      2
Orifice Size      :      3/4 in
Power Rating      :      10.1/11.6 W
Pressure Rating      :      0 to 150 psi
Seal Material      :      NBR/PTFE
Seat Material      :      NBR
Series      :      210
Temperature Rating      :      180 deg F
Top to Inlet Center      :      3.94 in
Voltage Rating      :      120 V
  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High flow valves for liquid, corrosive and air/inert gas service
  • Valves can be specified for hot water service to 210 deg F for in laundry, boiler and heat exchanger applications
  • Ideal for high pressure control applications in commercial and industrial gas burners
  • Use to control liquid petroleum gases (propane) in grain dryers, incinerators and space heaters
  • Diaphragm construction
  • Open when de-energized
  • PA disc holder
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel spring
  • Copper shading coil
