ASCO 8210G100 8210G100

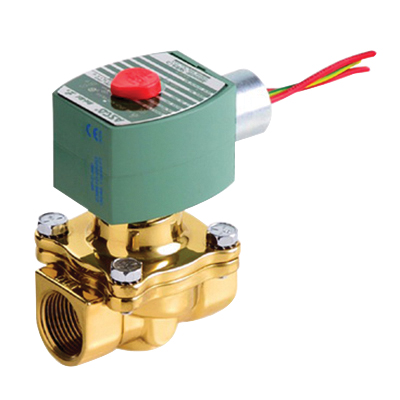

ASCO 8210G100 Solenoid Valve

Asco RedHat 8210G100 Solenoid Valve, 2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8210G100 Solenoid Valve, 2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8210G100

Asco RedHat Solenoid Valve, 2 in Nominal, NPT, NC, AC: 5 to 150 psi Air to Inert Gas, 5 to 125 psi Water and 90 psi Light Oil at 300 SSU Differential, DC: 5 to 50 psi Air to Inert Gas, Water and Light Oil at 300 SSU Differential, 1-3/4 in Orifice, Coil Insulation Class: F, H, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR/PTFE Seal, NBR/PTFE Disc, 180 deg F AC, 150 deg F DC Fluid, 5.06 in L x 4.87 in W x 7.33 in H

Body Material      :      Brass
Coil Insulation Class      :      F, H
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      5.06 in L x 4.87 in W x 7.33 in H
Disc Material      :      NBR/PTFE
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      2 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      1-3/4 in
Pressure Rating      :      AC: 5 to 150 psi Air to Inert Gas, 5 to 125 psi Water and 90 psi Light Oil at 300 SSU Differential, DC: 5 to 50 psi Air to Inert Gas, Water and Light Oil at 300 SSU Differential
Seal Material      :      NBR/PTFE
Temperature Rating      :      180 deg F AC, 150 deg F DC Fluid
  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High-flow valves for liquid, corrosive and air/inert gas service
  • Piston construction
  • PA disc holder
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • 6.1 W AC, 11.6 W DC, 16 V-A holding, 40 V-A inrush power rating
  • 120 VAC at 60 Hz voltage rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G100_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G100_Full_Engineering_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G100_Specification_Sheet.pdf
