ASCO 8210G4 8210G4

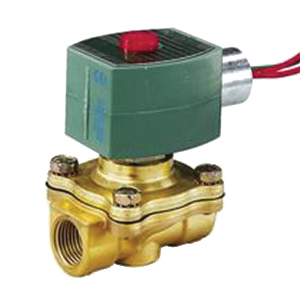

ASCO 8210G4 Solenoid Valve

Asco RedHat 8210G4 Solenoid Valve, 1 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8210G4 Solenoid Valve, 1 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8210G4

Asco RedHat Solenoid Valve, 1 in Nominal, NPT, NC, 5 to 150 psi Air to Inert Gas, Water and 100 psi Light Oil at 300 SSU AC, 125 psi Air to Inert Gas, Water and Light Oil at 300 SSU DC Differential, 1 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR/PTFE Seal, NBR/PTFE Disc, 180 deg F AC, 150 deg F DC Fluid, 3-3/4 in L x 3.36 in W x 5.64 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      3-3/4 in L x 3.36 in W x 5.64 in H
Disc Material      :      NBR/PTFE
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      1 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      1 in
Pressure Rating      :      5 to 150 psi Air to Inert Gas, Water and 100 psi Light Oil at 300 SSU AC, 125 psi Air to Inert Gas, Water and Light Oil at 300 SSU DC Differential
Seal Material      :      NBR/PTFE
Temperature Rating      :      180 deg F AC, 150 deg F DC Fluid
  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High-flow valves for liquid, corrosive and air/inert gas service
  • NBR or PTFE seal and discs
  • PA disc holder
  • 305 stainless steel core tube, 430F stainless steel core and plug nut, 302 stainless steel springs
  • Copper shading coil
  • Diaphragm construction
  • 6.1 W AC, 11.6 W DC, 16 V-A holding, 40 V-A Inrush AC power rating
  • 120 VAC at 60 Hz voltage rating
