ASCO 8210G95 8210G95

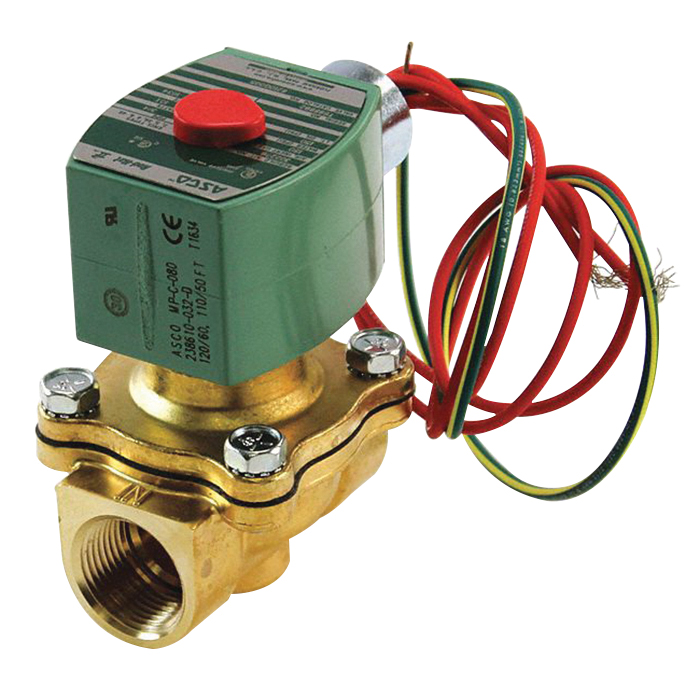

ASCO 8210G95 General Service Solenoid Valve

Asco 8210G95 General Service Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco 8210G95 General Service Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8210G95

Asco General Service Solenoid Valve, 3/4 in Nominal, NPT, NO, 0 to 150 psi Air to Fuel Gas and Water AC Differential, 0 to 40 psi Air to Fuel Gas and Water DC Differential, 3/4 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, Brass Body, NBR Seal, NBR Disc, 180 deg F AC Fluid, 150 deg F DC Fluid, 2.81 in L x 2.29 in W x 4.13 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NO
Connection Type      :      NPT
Dimensions      :      2.81 in L x 2.29 in W x 4.13 in H
Disc Material      :      NBR
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      3/4 in
Pressure Rating      :      0 to 150 psi Air to Fuel Gas and Water AC Differential, 0 to 40 psi Air to Fuel Gas and Water DC Differential
Seal Material      :      NBR
Temperature Rating      :      180 deg F AC Fluid, 150 deg F DC Fluid
  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High-flow valves for liquid, corrosive and air/inert gas service
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 70 V-A inrush power rating
  • 120 V voltage rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G95_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8210G95_Instruction_Installation_Manual.pdf
