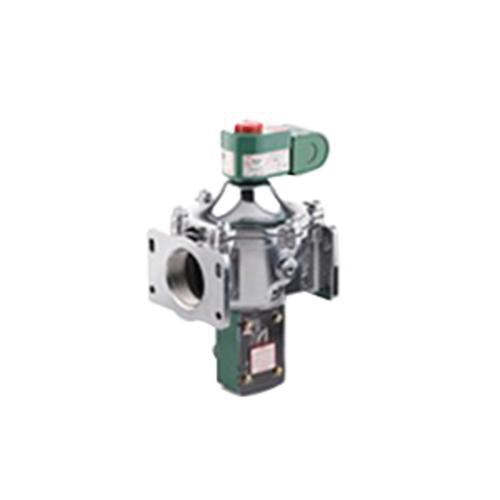

ASCO 8214280CSA-120V Solenoid Valve

Asco RedHat 8214280CSA-120V Solenoid Valve, 2 in Nominal, NPT Connection, 2 -Port/Way, 2941 cfh, 125 deg F Fluid

Asco RedHat 8214280CSA-120V Solenoid Valve, 2 in Nominal, NPT Connection, 2 -Port/Way, 2941 cfh, 125 deg F Fluid 8214280CSA-120V

Asco RedHat Solenoid Valve, 2 in Nominal, NPT, NC, 0 to 5 psi Differential, 2941 cfh, Media: Fuel, 2-3/32 in Orifice, Coil Insulation Class: F, 2 Positions, 2 Ports/Ways, NEMA 1, Aluminum Body, NBR Seal, NBR Disc, 125 deg F Fluid, 6.36 in L x 6.32 in W x 7.63 in H

Body Material      :      Aluminum
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      6.36 in L x 6.32 in W x 7.63 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1
Flow Rate      :      2941 cfh
Media      :      Fuel
Nominal Size      :      2 in
Number of Ports/Ways      :      2
Number of Positions      :      2
Orifice Size      :      2-3/32 in
Pressure Rating      :      0 to 5 psi Differential
Seal Material      :      NBR
Temperature Rating      :      125 deg F Fluid
  • Unique double disc design with over travel provides redundant sealing for leak tight shut-off
  • 1/8 in NPT pipe taps with plugs for routine testing
  • Optional flange adapters for ease of installation and service
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • POM core guide
  • PTFE rider rings
  • Copper shading coil
  • Zinc-plated steel pipe plug
  • 2940500 Btu/hr nominal capacity
  • 120 VAC at 60 Hz voltage rating
