ASCO 8214G030-12VDC 8214G030-12VDC

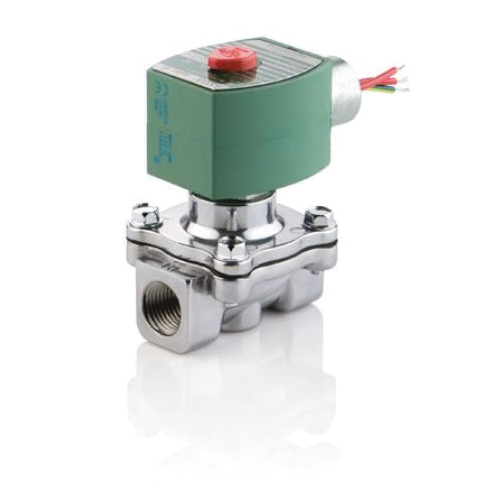

ASCO 8214G030-12VDC Gas Shut-Off Valve

Asco 8214G030-12VDC Gas Shut-Off Valve, 3/4 in Nominal, NPT Connection, 2-Port/Way, 5 psi Pressure, 140 deg F

Asco 8214G030-12VDC Gas Shut-Off Valve, 3/4 in Nominal, NPT Connection, 2-Port/Way, 5 psi Pressure, 140 deg F 8214G030-12VDC

Asco Gas Shut-Off Valve, Series: 8214, 3/4 in Nominal, NPT Connection, 5 psi, Gas Media, 3/4 in Orifice, 3.31 in Inlet to Outlet Length, 3.64 in Top to Inlet Center, F Coil Insulation Class, Copper Coil, 2, Die-Cast Aluminum Body, NBR Seal, NBR Disc, 140 deg F, 4.52 in H x 2.39 in W, Additional Information: 247500 Btu/hr Gas Capacity

Additional Information      :      247500 Btu/hr Gas Capacity
Body Material      :      Die-Cast Aluminum
Coil Insulation Class      :      F
Coil Type      :      Copper
Connection Type      :      NPT
Dimensions      :      4.52 in H x 2.39 in W
Disc Material      :      NBR
Inlet to Outlet Length      :      3.31 in
Media      :      Gas
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2
Orifice Size      :      3/4 in
Pressure Rating      :      5 psi
Seal Material      :      NBR
Series      :      8214
Temperature Rating      :      140 deg F
Top to Inlet Center      :      3.64 in
  • 2-way normally closed operation
  • Zero differential piloted diaphragm
  • For on-off control of fuel gas in commercial and industrial gas burners
  • Valves provided with 1/8 in NPT upstream and downstream pipe taps with plugs for routine testing
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/ASCO_8214G02012VDC_Specification_Sheet.pdf
