ASCO 8215B093 8215B093

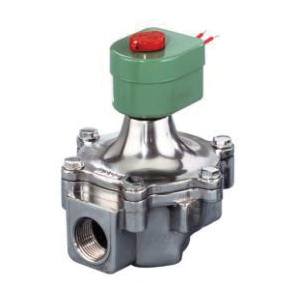

ASCO 8215B093 Solenoid Valve

Asco 8215 Series 8215B093 Solenoid Valve, 2-1/2 in Nominal, NPT Connection, 2-Port/Way, 32 to 125 deg F

Asco 8215 Series 8215B093 Solenoid Valve, 2-1/2 in Nominal, NPT Connection, 2-Port/Way, 32 to 125 deg F 8215B093

Asco Solenoid Valve, Series: 8215 Series, 2-1/2 in Nominal, NPT Connection, Normally Open, Air, Fuel Gas Media, 3 in Orifice, Class F Coil Insulation Class, Copper Coil, 2, Aluminum Body, NBR Seal, NBR Disc, NBR Softgoods, 32 to 125 deg F, 7.8 in L x 7.94 in W x 10.25 in H, Additional Information: Direct Acting

Additional Information      :      Direct Acting
Body Material      :      Aluminum
Coil Insulation Class      :      Class F
Coil Type      :      Copper
Configuration      :      Normally Open
Connection Type      :      NPT
Dimensions      :      7.8 in L x 7.94 in W x 10.25 in H
Disc Material      :      NBR
Media      :      Air, Fuel Gas
Nominal Size      :      2-1/2 in
Number of Ports/Ways      :      2
Orifice Size      :      3 in
Seal Material      :      NBR
Series      :      8215 Series
Softgoods Material      :      NBR
Temperature Rating      :      32 to 125 deg F
  • Lightweight, low cost valves for air service
  • Ideal for low pressure applications
  • Provides high flow with Cv up to 138
  • Air and vacuum service
