ASCO 8215G030DC24/DCD 8215G030DC24/DCD

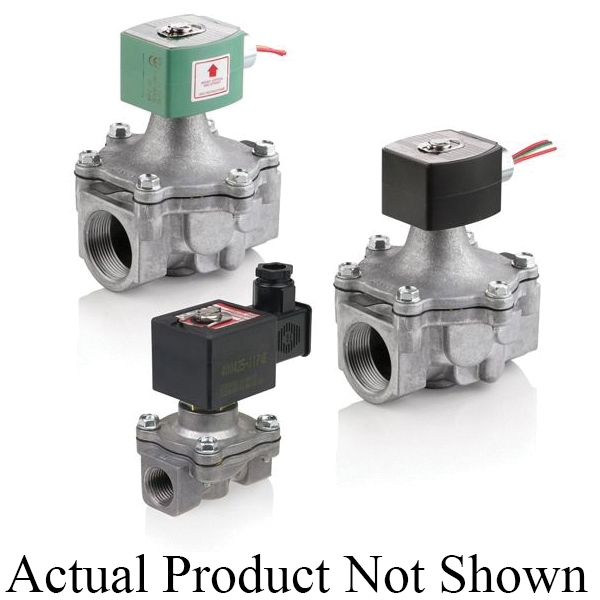

ASCO 8215G030DC24/DCD Solenoid Valve

Asco 8215G030DC24/DCD Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way, 25 psi Pressure, Aluminum Body

Asco 8215G030DC24/DCD Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way, 25 psi Pressure, Aluminum Body 8215G030DC24/DCD

The ASCO 215 series is an aluminum body, lightweight solenoid valve for high flow, low pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shutoff. Optional long life design eliminates metal to metal contact to extend life up to 20 million cycles. The 215 series is ideal for vacuum service and heating equipment applications.
ASCO Solenoid Valve, Series: 8215 Series, 3/4 in Nominal, NPT Connection, 1NC, NPT End, 25 psi, 247500 Btu/hr Nominal Capacity, Air, Fuel Gas, Inert Gas Media, Direct Acting Actuator, 3/4 in Orifice, 3.31 in Inlet to Outlet Length, 3.64 in Top to Inlet Center, 24 VDC, 11.6 W, 60 Hz, Class F Coil Insulation Class, Copper Coil, 2 Positions, 2-Way, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Aluminum Body, NBR Seal, NBR Disc, NBR/PTFE Softgoods, 32 to 104 deg F, 3.31 in L x 2.33 in W x 4.46 in H, Additional Information: 4.4 Cv Flow Coefficient

Actuator Type      :      Direct Acting
Additional Information      :      4.4 Cv Flow Coefficient
Body Material      :      Aluminum
Coil Insulation Class      :      Class F
Coil Type      :      Copper
Configuration      :      1NC
Connection Type      :      NPT
Dimensions      :      3.31 in L x 2.33 in W x 4.46 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
End Type      :      NPT
Frequency Rating      :      60 Hz
Inlet to Outlet Length      :      3.31 in
Media      :      Air, Fuel Gas, Inert Gas
Nominal Capacity      :      247500 Btu/hr
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2-Way
Number of Positions      :      2
Orifice Size      :      3/4 in
Power Rating      :      11.6 W
Pressure Rating      :      25 psi
Seal Material      :      NBR
Series      :      8215 Series
Softgoods Material      :      NBR/PTFE
Temperature Rating      :      32 to 104 deg F
Top to Inlet Center      :      3.64 in
Voltage Rating      :      24 VDC
  • Provides high flow with Cv up to 138 (Kv 118)
  • Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas application
  • A full range of pipe sizes up to 3 in with both normally closed and normally open constructions
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8215G030DC24_DCD_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8215G030DC24_DCD_Instruction_Installation_Manual.pdf
