ASCO 8220G093AC120/60 8220G093AC120/60

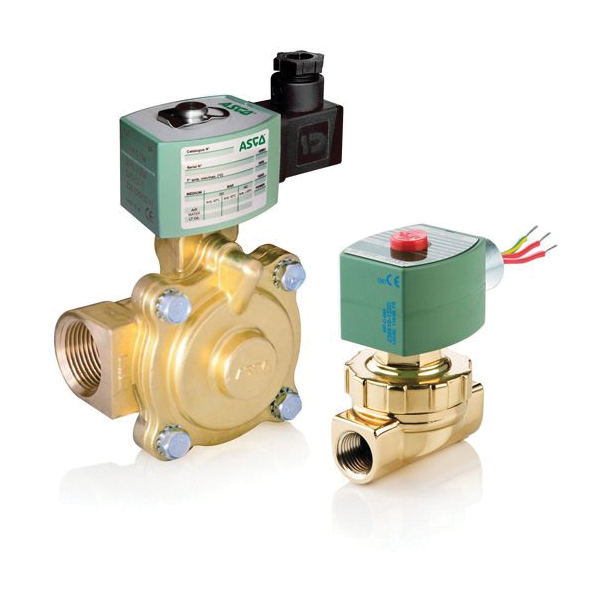

ASCO 8220G093AC120/60 Solenoid Valve

Asco 8220G093AC120/60 Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Way, 125/150 psi Pressure

Asco 8220G093AC120/60 Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Way, 125/150 psi Pressure 8220G093AC120/60

The ASCO 220 series steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4 in valve flow from ASCO equals the competitors in flow. The series 220 floating PTFE diaphragm provides positive sealing and improved durability - up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
ASCO Solenoid Valve, Series: 8220 Series, 1/2 in Nominal, NPT Connection, 1NO, NPT End, 125/150 psi, Hot Water, Steam Media, Pilot Actuator, 9/16 in Orifice, 2.71 in Inlet to Outlet Length, 4.35 in Top to Inlet Center, 120 VAC, 16.1 W, 60 Hz, Class H Coil Insulation Class, Copper Coil, 2 Positions, 2-Way, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Brass Body, EPDM/PTFE Seal, EPDM/PTFE Disc, EPDM/PTFE Trim, EPDM/PTFE Softgoods, 32 to 140 deg F, 5.11 in H x 2.71 in L x 3.58 in W, Additional Information: 4 Cv Flow Coefficient

Actuator Type      :      Pilot
Additional Information      :      4 Cv Flow Coefficient
Body Material      :      Brass
Coil Insulation Class      :      Class H
Coil Type      :      Copper
Configuration      :      1NO
Connection Type      :      NPT
Dimensions      :      5.11 in H x 2.71 in L x 3.58 in W
Disc Material      :      EPDM/PTFE
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
End Type      :      NPT
Frequency Rating      :      60 Hz
Inlet to Outlet Length      :      2.71 in
Media      :      Hot Water, Steam
Nominal Size      :      1/2 in
Number of Ports/Ways      :      2-Way
Number of Positions      :      2
Orifice Size      :      9/16 in
Power Rating      :      16.1 W
Pressure Rating      :      125/150 psi
Seal Material      :      EPDM/PTFE
Series      :      8220 Series
Softgoods Material      :      EPDM/PTFE
Temperature Rating      :      32 to 140 deg F
Top to Inlet Center      :      4.35 in
Trim Material      :      EPDM/PTFE
Voltage Rating      :      120 VAC
  • Longer life cycles - tested to 1 million cycles on hot water and 50 psi steam, 500000 cycles on 125 psi steam
  • Lower power operation - smaller operator reduces energy consumption on 5 psi differential pressure application
  • DC constructions have quiet designs that work with 0 psi differential pressure on hot water and 50 psi steam
  • Inventory reduction - one valve can be used for both steam and hot water application
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8220G093AC120_60_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8220G093AC120_60_Instruction_Installation_Manual.pdf
