ASCO 8220G13 8220G13

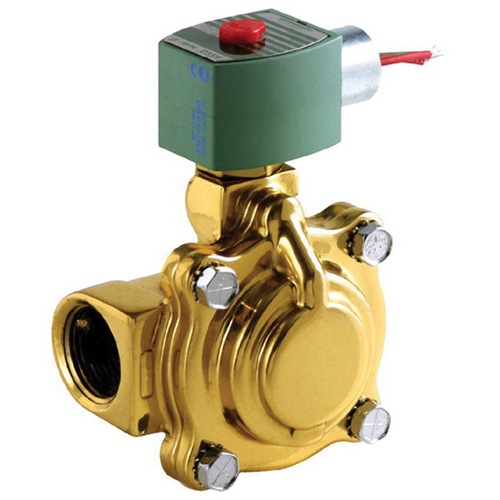

ASCO 8220G13 Solenoid Valve

Asco RedHat 8220G13 Solenoid Valve, 2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8220G13 Solenoid Valve, 2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8220G13

Asco RedHat Solenoid Valve, 2 in Nominal, NPT, NC, AC: 5 to 50 psi Steam, 5 to 150 psi Hot Water Differential, 1-3/4 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, EPDM/PTFE Seal, EPDM/PTFE Disc, 300 deg F Steam, 210 deg F AC Hot Water, 5.06 in L x 4.71 in W x 7.51 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      5.06 in L x 4.71 in W x 7.51 in H
Disc Material      :      EPDM/PTFE
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      2 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      1-3/4 in
Pressure Rating      :      AC: 5 to 50 psi Steam, 5 to 150 psi Hot Water Differential
Seal Material      :      EPDM/PTFE
Temperature Rating      :      300 deg F Steam, 210 deg F AC Hot Water
  • Handle the challenges of high-temperature fluids
  • PTFE and EPDM discs, stainless steel seats, plus high-temperature coils help provide long, reliable service life
  • Wide range of valve constructions, including straight through and slow closing, with normally closed and normally open operation
  • Heavy-duty, pilot operated piston valves have stainless steel pistons
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Stainless steel piston
  • 10.1 W AC power rating
  • 120 VAC at 60 Hz voltage rating
