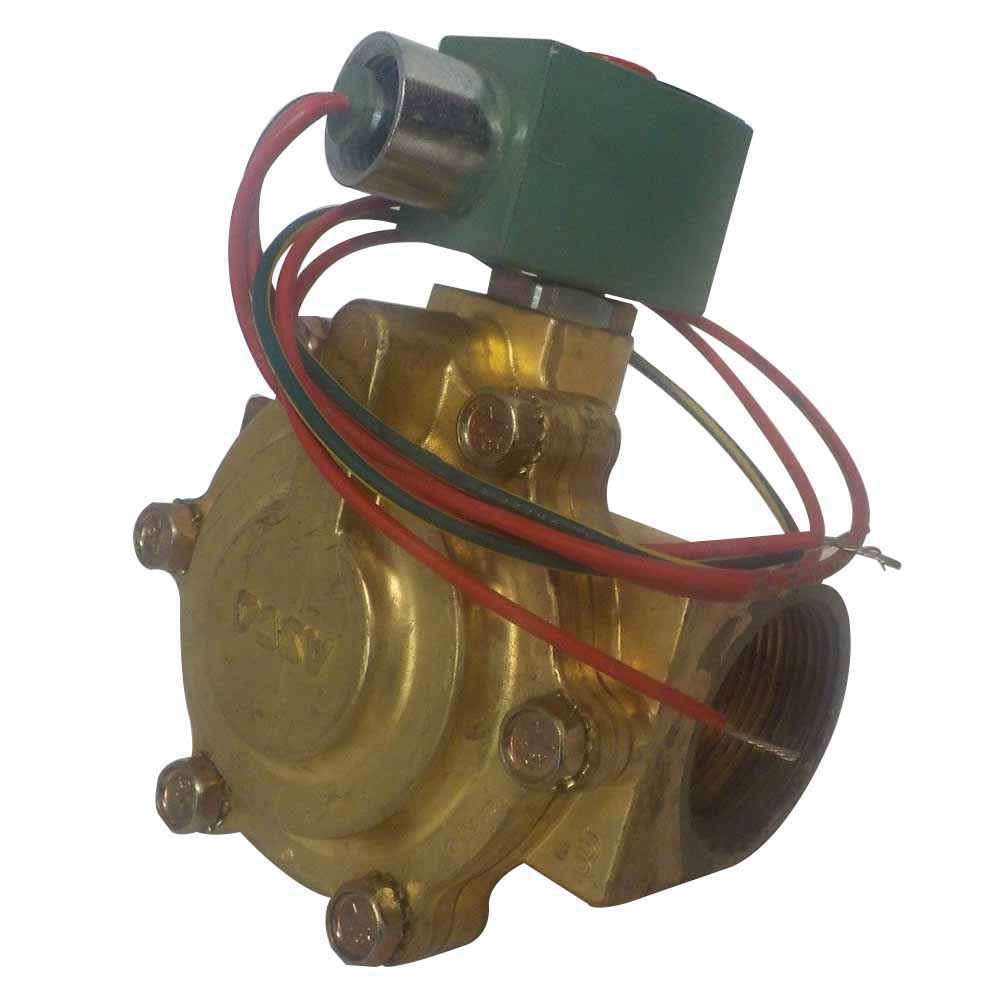

ASCO 8221G11 Solenoid Valve

Asco RedHat 8221G11 Solenoid Valve, 1-1/2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8221G11 Solenoid Valve, 1-1/2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8221G11

Asco RedHat Solenoid Valve, 1-1/2 in Nominal, NPT, NC, 5 to 150 psi water AC and 125 psi Water DC Differential, 1-1/4 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR/PTFE Seal, NBR Disc, 180 deg F AC, 150 deg F DC Fluid, 4.38 in L x 4.12 in W x 6.12 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      4.38 in L x 4.12 in W x 6.12 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      1-1/2 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      1-1/4 in
Pressure Rating      :      5 to 150 psi water AC and 125 psi Water DC Differential
Seal Material      :      NBR/PTFE
Temperature Rating      :      180 deg F AC, 150 deg F DC Fluid
  • Snubber slows disc closing speed to protect system against water hammer damage more effectively than other techniques
  • Pressure spike due to water hammer reduced to a point eliminating the need for suppressors or other controls in most water systems
  • Fluid Controls Institute Inc. Evaluations have classified these valves
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Stainless Steel or brass piston
  • Copper shading coil
  • 6.1 W AC, 11.6 W DC, 16 V-A holding, 30 V-A inrush power rating
  • 120 VAC at 60 Hz voltage rating
