ASCO 8222G74 8222G74

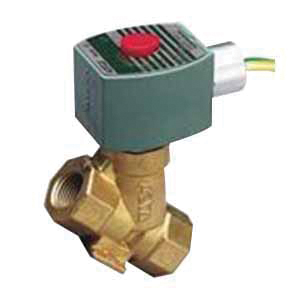

ASCO 8222G74 Solenoid Valve

Asco RedHat 8222G74 Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 353 deg F Steam Fluid

Asco RedHat 8222G74 Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 353 deg F Steam Fluid 8222G74

Asco RedHat Solenoid Valve, 3/8 in Nominal, NPT, NC, 1 to 125 psi Steam, 3/8 in Orifice, Coil Insulation Class: H, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, EPDM/PTFE Seal, PTFE/EPDM Disc, 353 deg F Steam Fluid, 2.28 in L x 1.69 in W x 4.17 in H

Body Material      :      Brass
Coil Insulation Class      :      H
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2.28 in L x 1.69 in W x 4.17 in H
Disc Material      :      PTFE/EPDM
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      3/8 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      3/8 in
Pressure Rating      :      1 to 125 psi Steam
Seal Material      :      EPDM/PTFE
Temperature Rating      :      353 deg F Steam Fluid
  • Handle the challenges of high-temperature fluids
  • PTFE and EPDM discs, stainless steel seats, plus high-temperature coils help provide long, reliable service life
  • Wide range of valve constructions, including straight through and slow closing, with normally closed and normally open operation
  • Y-body floating piston design
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • Brass or PTFE piston
  • EPDM and PTFE diaphragm
  • 6.1 W AC power rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8222G74_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8222G74_Instruction_Installation_Manual.pdf
