ASCO 8262H202 8262H202

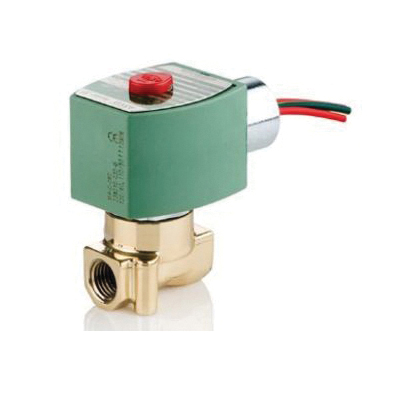

ASCO 8262H202 Solenoid Valve

Asco 8262 Series 8262H202 Solenoid Valve, 1/4 in Nominal, NPT Connection, 13 to 131 deg F, Brass Body

Asco 8262 Series 8262H202 Solenoid Valve, 1/4 in Nominal, NPT Connection, 13 to 131 deg F, Brass Body 8262H202

Asco Solenoid Valve, Series: 8262 Series, 1/4 in Nominal, NPT Connection, Normally Closed, Air, Inert Gas, Light Oil, Water Media, 5/32 in Orifice, Copper Coil, NEMA 4 Enclosure, Brass Body, NBR Seal, NBR Disc, NBR Softgoods, 13 to 131 deg F, 1.56 in L x 1.95 in W x 3.12 in H, Additional Information: Direct Acting

Additional Information      :      Direct Acting
Body Material      :      Brass
Coil Type      :      Copper
Configuration      :      Normally Closed
Connection Type      :      NPT
Dimensions      :      1.56 in L x 1.95 in W x 3.12 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 4
Media      :      Air, Inert Gas, Light Oil, Water
Nominal Size      :      1/4 in
Orifice Size      :      5/32 in
Seal Material      :      NBR
Series      :      8262 Series
Softgoods Material      :      NBR
Temperature Rating      :      13 to 131 deg F
  • Welded core tube provides higher pressure ratings
  • Reliable, proven design with high flows
  • Small poppet valves for tight shut-off
  • Mount in any position
  • Wide range of elastomers for specialty service applications
  • Tapped mounting holes in body standard
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8262H202_Catalog.pdf
