ASCO 8262H232 8262H232

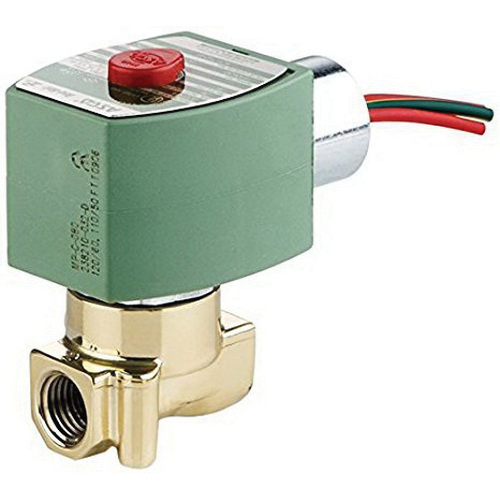

ASCO 8262H232 Solenoid Valve

Asco RedHat 8262H232 Solenoid Valve, 1/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 180 deg F AC, DC Fluid

Asco RedHat 8262H232 Solenoid Valve, 1/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 180 deg F AC, DC Fluid 8262H232

Asco RedHat Solenoid Valve, 1/4 in Nominal, NPT, NC, 340 psi Air to Inert Gas, 300 psi Water, 215 psi Light Oil at 300 SSU AC at 131 deg F and 130 psi Air to Inert Gas, 125 psi Water, 115 psi Light Oil at 300 SSU DC at 104 deg F, 110 psi Air to Inert Gas, 105 psi Water, 100 psi Light Oil at 300 SSU DC at 131 deg F Differential, 1/8 in Orifice, Coil Insulation Class: F, H, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR/Cast UR Seal, NBR Disc, 180 deg F AC, DC Fluid, 1.56 in L x 1.95 in W x 3.12 in H

Body Material      :      Brass
Coil Insulation Class      :      F, H
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      1.56 in L x 1.95 in W x 3.12 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      1/4 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      1/8 in
Pressure Rating      :      340 psi Air to Inert Gas, 300 psi Water, 215 psi Light Oil at 300 SSU AC at 131 deg F and 130 psi Air to Inert Gas, 125 psi Water, 115 psi Light Oil at 300 SSU DC at 104 deg F, 110 psi Air to Inert Gas, 105 psi Water, 100 psi Light Oil at 300 SSU DC at 131 deg F Differential
Seal Material      :      NBR/Cast UR
Temperature Rating      :      180 deg F AC, DC Fluid
  • Welded core tube provides higher pressure ratings
  • Reliable, proven design with high flows
  • Small poppet valves for tight shut-off
  • Wide range of elastomers for specialty service applications
  • Mountable in any position
  • Tapped mounting holes in body standard
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 50 V-A inrush power rating
  • 120 VAC at 60 Hz voltage rating
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8262H232_Specification_Sheet.pdf
