ASCO 8262H261-240V 8262H261-240V

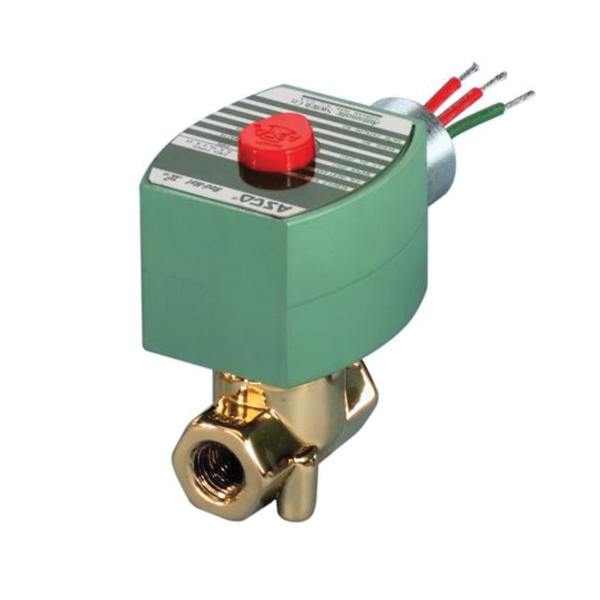

ASCO 8262H261-240V Solenoid Valve

Asco RedHat 8262 8262H261-240V Solenoid Valve, 1/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8262 8262H261-240V Solenoid Valve, 1/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body 8262H261-240V

Asco RedHat Solenoid Valve, Series: 8262, 1/4 in Nominal, NPT, NO, 0 to 275 psi Air to Inert Gas, 230 psi Water and 180 psi Lite Oil at 300 SSU AC, 160 psi Air to Inert Gas, 135 psi Water and 95 psi Lite oil at 300 SSU DC, 3/32 in Orifice, Coil Insulation Class: F, H, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, PA Stem, NBR/Cast UR Seal, NBR/Cast UR Disc, 180 deg F AC, DC Fluid, 1.56 in L x 2.06 in W x 3.12 in H

Body Material      :      Brass
Coil Insulation Class      :      F, H
Configuration      :      NO
Connection Type      :      NPT
Dimensions      :      1.56 in L x 2.06 in W x 3.12 in H
Disc Material      :      NBR/Cast UR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      1/4 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      3/32 in
Pressure Rating      :      0 to 275 psi Air to Inert Gas, 230 psi Water and 180 psi Lite Oil at 300 SSU AC, 160 psi Air to Inert Gas, 135 psi Water and 95 psi Lite oil at 300 SSU DC
Seal Material      :      NBR/Cast UR
Series      :      8262
Stem Material      :      PA
Temperature Rating      :      180 deg F AC, DC Fluid
  • Reliable, proven design with high flows
  • Small poppet valves for tight shut-off
  • Wide range of elastomers for specialty service applications
  • Mountable in any position
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 50 V-A inrush power rating
  • 240 VAC at 60 Hz voltage rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8262H261_240V_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8262H261_240V_Instruction_Installation_Manual.pdf
