ASCO 8266D061V 8266D061V

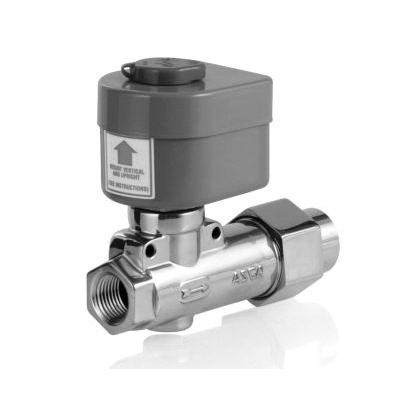

ASCO 8266D061V Direct Acting Solenoid Valve

Asco 8266 8266D061V Direct Acting Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Port/Way, 0.7 cu-m/hr

Asco 8266 8266D061V Direct Acting Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Port/Way, 0.7 cu-m/hr 8266D061V

Asco Direct Acting Solenoid Valve, Series: 8266, 1/2 in Nominal Size, NPT Connection, NC, 0.7 cu-m/hr Flow Rate, Lever Actuator, 13/64 in Orifice, F Coil Insulation Class, 2 Positions, 2 Ports/Ways, NEMA 1 Enclosure, Brass Body, FKM Seat, FKM Seal, FKM Disc, Stainless Steel Trim, 250 to 225 deg F, Dimensions: 4.69 in W x 4.5 in H, Additional Information: 120/110 V Voltage Rating, 50/60 Hz Frequency Rating

Actuator Type      :      Lever
Additional Information      :      120/110 V Voltage Rating, 50/60 Hz Frequency Rating
Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      4.69 in W x 4.5 in H
Disc Material      :      FKM
Enclosure Type      :      NEMA 1
Flow Rate      :      0.7 cu-m/hr
Nominal Size      :      1/2 in
Number of Ports/Ways      :      2
Number of Positions      :      2
Orifice Size      :      13/64 in
Seal Material      :      FKM
Seat Material      :      FKM
Series      :      8266
Temperature Rating      :      250 to 225 deg F
Trim Material      :      Stainless Steel
  • General-purpose brass enclosure for a variety of applications
  • Zero differential lever actuated
  • For on-off control of fuel oil in commercial and industrial oil burners
