ASCO 8290B10 8290B10

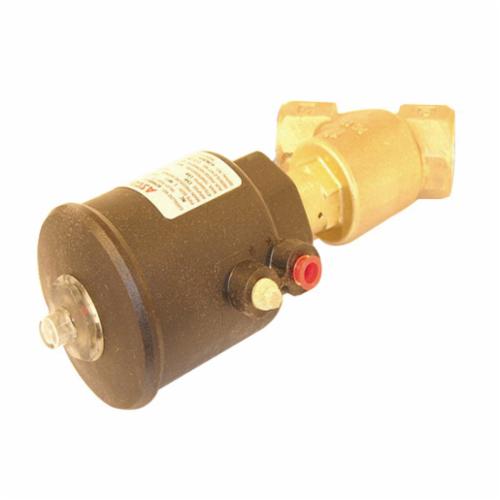

ASCO 8290B10 Multi-Purpose Valve

Asco 8290B10 Multi-Purpose Valve, 1 in Nominal, NPT Connection, Bronze

Asco 8290B10 Multi-Purpose Valve, 1 in Nominal, NPT Connection, Bronze 8290B10

The 8290 series consists of 2-way direct acting valves available in normally closed or normally open constructions. Built for demanding applications, these valves come in a straight-through body design made of bronze or stainless steel. There are many optional features including visual/electrical position indicator or a stroke limiter.
ASCO Multi-Purpose Valve, 1 in Nominal, NPT Connection, 2-Way/2-Position -Ways/Position, Configuration: NC, 0 - 150 lb/sq-in Steam/Fluid Differential, 60 - 150 lb/sq-in Air or Water Pressure, Bronze, 15 - 140 deg F Ambient, 366 deg F Fluid, 3.54 in L x 7.7 in H

Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      3.54 in L x 7.7 in H
Material      :      Bronze
Nominal Size      :      1 in
Number of Ways/Position      :      2-Way/2-Position
Pressure Rating      :      0 - 150 lb/sq-in Steam/Fluid Differential, 60 - 150 lb/sq-in Air or Water
Temperature Rating      :      15 - 140 deg F Ambient, 366 deg F Fluid
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8290B10_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8290B10_Specification_Sheet.pdf
