ASCO 8320G001 8320G001

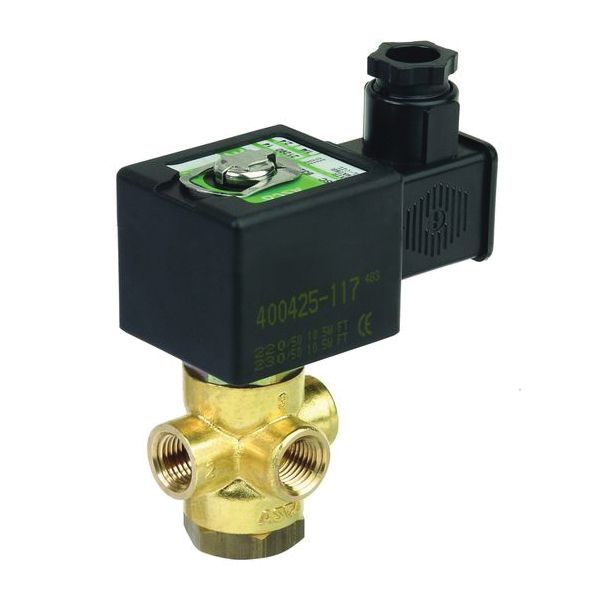

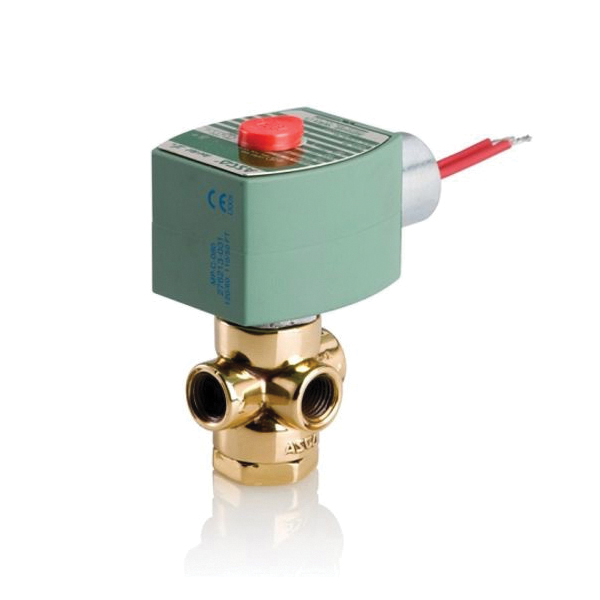

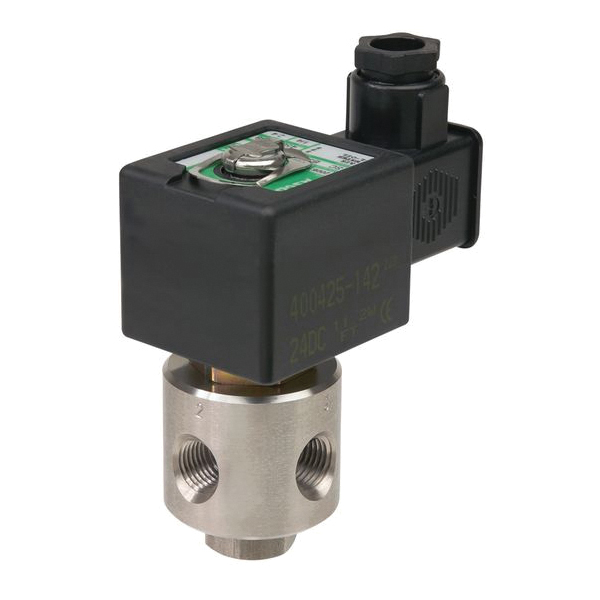

ASCO 8320G001 Direct Acting Solenoid Valve

Asco 8320 8320G001 Direct Acting Solenoid Valve, 1/8 in Nominal, NPT Connection, 3-Port/Way, 0.08 cu-m/hr

Asco 8320 8320G001 Direct Acting Solenoid Valve, 1/8 in Nominal, NPT Connection, 3-Port/Way, 0.08 cu-m/hr 8320G001

The ASCO 320-s Series are general service solenoid valves designed for a broad range of applications. The direct acting valves are available in voltage ranging, harsh environment, direct-mount, dribble control and long life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences and press room and metal stamping.
ASCO Direct Acting Solenoid Valve, Series: 8320, 1/8 in Nominal Size, NPT Connection, Universal, 0.08 cu-m/hr Flow Rate, Media: Air, Inert Gas, Light Oil, Water, 1/16 in Orifice, F Coil Insulation Class, 2 Positions, 3 Ports/Ways, Brass Body, FKM Seat, Stainless Steel Trim, Additional Information: 24 VAC Voltage Rating

Additional Information      :      24 VAC Voltage Rating
Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      Universal
Connection Type      :      NPT
Flow Rate      :      0.08 cu-m/hr
Media      :      Air, Inert Gas, Light Oil, Water
Nominal Size      :      1/8 in
Number of Ports/Ways      :      3
Number of Positions      :      2
Orifice Size      :      1/16 in
Seat Material      :      FKM
Series      :      8320
Trim Material      :      Stainless Steel
  • All NPT connections are in the valve body to allow in-line piping
  • No minimum operating pressure differential required
  • Mountable in any position
  • Long life version eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications, easily handles rapid cycling or continuous energization
  • Harsh environment model offers low power consumption plus quick shutdown of valves and actuators, valves are UL, CSA, ATEX and IIECEx certified
  • RedHat next generation model offers voltage ranging with low power operation, valves have Class I, Division 2 coils
