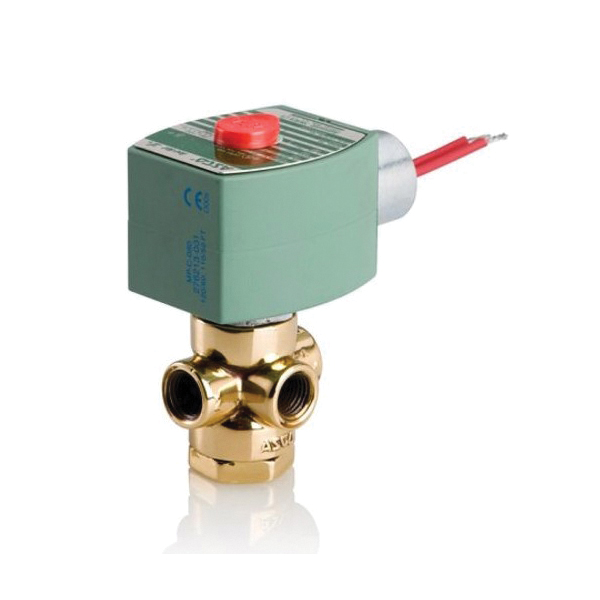

ASCO 8320G172 120/60,110/50 Solenoid Valve

Asco 320 Series 8320G172 120/60,110/50 Solenoid Valve, 1/4 in Nominal, NPT Connection, 3-Port/Way, 32 to 125 deg F

Asco 320 Series 8320G172 120/60,110/50 Solenoid Valve, 1/4 in Nominal, NPT Connection, 3-Port/Way, 32 to 125 deg F 8320G172-120/60,110/50

The ASCO 320-S Series are general service solenoid valves designed for a broad range of applications. The direct acting valves are available in voltage ranging, harsh environment, direct-mount, dribble control and long life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences and press room and metal stamping.
ASCO Solenoid Valve, Series: 320 Series, 1/4 in Nominal, NPT Connection, NPT Port, Universal, Air, Inert Gas, Light Oil, Water Media, 1/16 in Orifice, Class F Coil Insulation Class, 3, Brass Body, NBR Seal, UR Disc, 32 to 125 deg F, 3.74 in H, Additional Information: Direct Acting, 10.1 W Wattage, 0.09 Cv Flow Factor, 18 in L Lead, 25 VA Holding Current, FT Coil Class, 430F Stainless Steel Core and Plugnut, 305 Stainless Steel Core Tube, 302 Stainless Steel Spring Material, 110/120 VAC Voltage, 50/60 Hz Frequency

Additional Information      :      Direct Acting, 10.1 W Wattage, 0.09 Cv Flow Factor, 18 in L Lead, 25 VA Holding Current, FT Coil Class, 430F Stainless Steel Core and Plugnut, 305 Stainless Steel Core Tube, 302 Stainless Steel Spring Material, 110/120 VAC Voltage, 50/60 Hz Frequency
Body Material      :      Brass
Coil Insulation Class      :      Class F
Configuration      :      Universal
Connection Type      :      NPT
Dimensions      :      3.74 in H
Disc Material      :      UR
Media      :      Air, Inert Gas, Light Oil, Water
Nominal Size      :      1/4 in
Number of Ports/Ways      :      3
Orifice Size      :      1/16 in
Port Type      :      NPT
Seal Material      :      NBR
Series      :      320 Series
Temperature Rating      :      32 to 125 deg F
  • All NPT connections are in the valve body to allow in-line piping
  • No minimum operating pressure differential required
  • Mount in any position
  • Long life version eliminates metal to metal contact to extend life up to 20 million cycles in dry air or gas applications, easily handles rapid cycling or continuous energization
  • RedHat next generation model offers voltage ranging with low-power operation, valves have Class I, Division 2 coils
