ASCO 8344G072 8344G072

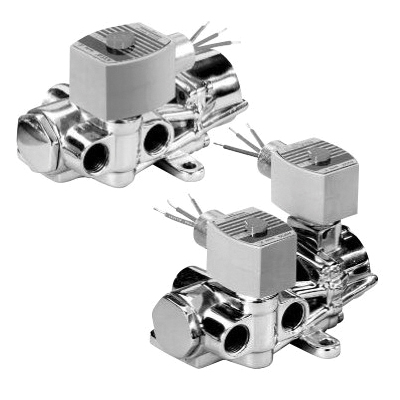

ASCO 8344G072 Piston/Poppet Solenoid Valve

Asco 8344G072 Piston/Poppet Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way, Brass Body

Asco 8344G072 Piston/Poppet Solenoid Valve, 3/8 in Nominal, NPT Connection, 2-Way, Brass Body 8344G072

Asco Piston/Poppet Solenoid Valve, Series: 8344 Series, 3/8 in Nominal, NPT Connection, 1NC, NPT End, Air, Water Media, Pilot Actuator, 3/8 in Orifice, 6.06 in Inlet to Outlet Length, 2.94 in Top to Inlet Center, Class F Coil Insulation Class, Copper Coil, 2 Positions, 2-Way, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Brass Body, NBR Seal, NBR Disc, 302/17-7PH Stainless Steel/NBR Trim, NBR/Polyamide Softgoods, 4.06 in H x 6.06 in W, Additional Information: 2.2 Cv Flow Coefficient

Actuator Type      :      Pilot
Additional Information      :      2.2 Cv Flow Coefficient
Body Material      :      Brass
Coil Insulation Class      :      Class F
Coil Type      :      Copper
Configuration      :      1NC
Connection Type      :      NPT
Dimensions      :      4.06 in H x 6.06 in W
Disc Material      :      NBR
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
End Type      :      NPT
Inlet to Outlet Length      :      6.06 in
Media      :      Air, Water
Nominal Size      :      3/8 in
Number of Ports/Ways      :      2-Way
Number of Positions      :      2
Orifice Size      :      3/8 in
Seal Material      :      NBR
Series      :      8344 Series
Softgoods Material      :      NBR/Polyamide
Top to Inlet Center      :      2.94 in
Trim Material      :      302/17-7PH Stainless Steel/NBR
  • Sturdy, robust construction
  • Piston operated poppet design provides high flow
  • For use with air or water
  • Dual solenoid can be shifted with a momentary signal and remain in position even if electrical power is lost
  • Mountable in any position
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8344G072_Catalog.pdf
