ASCO 8345H3 8345H3

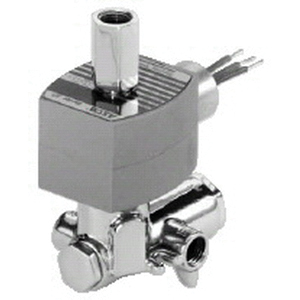

ASCO 8345H3 Solenoid Valve

Asco RedHat 8345H3 Solenoid Valve, 1/4 in Nominal, NPT Connection, 4-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8345H3 Solenoid Valve, 1/4 in Nominal, NPT Connection, 4-Way/2-Position -Port/Way, Brass Body 8345H3

Asco RedHat Solenoid Valve, 1/4 in Nominal, NPT, AC: 10 to 150 psi Air to Inert Gas Differential, DC: 10 to 100 psi Air to Inert Gas Differential, 1/16 in pressure, 3/32 in Exhaust Orifice, Coil Insulation Class: F, 4-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR, PA Seal, NBR, PA Disc, 180 deg F AC, 104 deg F DC Fluid, 3 in L x 2.06 in W x 4.69 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Connection Type      :      NPT
Dimensions      :      3 in L x 2.06 in W x 4.69 in H
Disc Material      :      NBR, PA
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      1/4 in
Number of Ports/Ways      :      4-Way/2-Position
Orifice Size      :      1/16 in pressure, 3/32 in Exhaust
Pressure Rating      :      AC: 10 to 150 psi Air to Inert Gas Differential, DC: 10 to 100 psi Air to Inert Gas Differential
Seal Material      :      NBR, PA
Temperature Rating      :      180 deg F AC, 104 deg F DC Fluid
  • Compact valves for general service applications
  • Low-cost, four-way valve when low flow is sufficient
  • Mountable in any position
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • PA piston
  • Single solenoid air-only construction-exhaust to atmosphere
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 50 V-A inrush power rating
  • 120 VAC at 60 Hz voltage rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8030G13_120V_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8345H3_Specification_Sheet.pdf
