ASCO 8353G821-24VDC 8353G821-24VDC

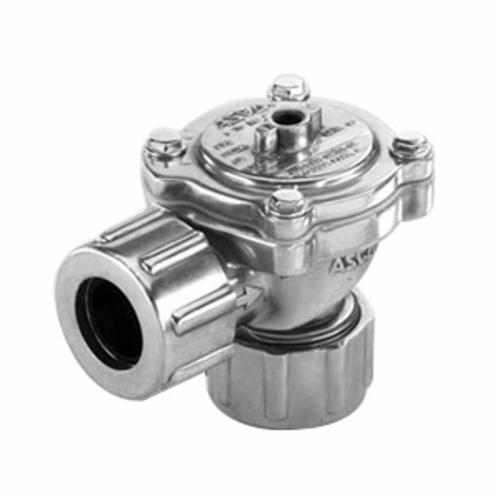

ASCO 8353G821-24VDC Power Pulse Valve with Coil

Asco RedHat 8353G821-24VDC Power Pulse Valve with Coil, 1 in Nominal, NPT Connection, 5 - 125 lb/sq-in Air Pressure

Asco RedHat 8353G821-24VDC Power Pulse Valve with Coil, 1 in Nominal, NPT Connection, 5 - 125 lb/sq-in Air Pressure 8353G821-24VDC

Asco RedHat Power Pulse Valve with Coil, 1 in Nominal, NPT Connection, Configuration: NC, 5 - 125 lb/sq-in Air Pressure, 24 VDC, 6.1 W AC, 18.6 W DC, Coil Insulation Class: F, 2-Way -Position, Aluminum Body, -4 to 104 deg F Ambient, 3.8 in L x 3 in W x 6 in H

Body Material      :      Aluminum
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      3.8 in L x 3 in W x 6 in H
Nominal Size      :      1 in
Number of Positions      :      2-Way
Power Rating      :      6.1 W AC, 18.6 W DC
Pressure Rating      :      5 - 125 lb/sq-in Air
Temperature Rating      :      -4 to 104 deg F Ambient
Voltage Rating      :      24 VDC
  • The high quality polyacetal (POM) Piston cartridge provides a long operating life and a large temperature range
  • Quick-mount connection eliminates thread cutting and sealing
  • Integral operators have molded epoxy coils, with available options
  • Valves may be mounted in any position
  • 1.1 in orifice size
  • 27 Cv flow co-efficiency
  • Integral pilot construction
  • POM (polyacetal) Piston/cartridge, -plated steel clamps/bolts
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8353G821_24VDC_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_8353G821_24VDC_Specification_Sheet.pdf
