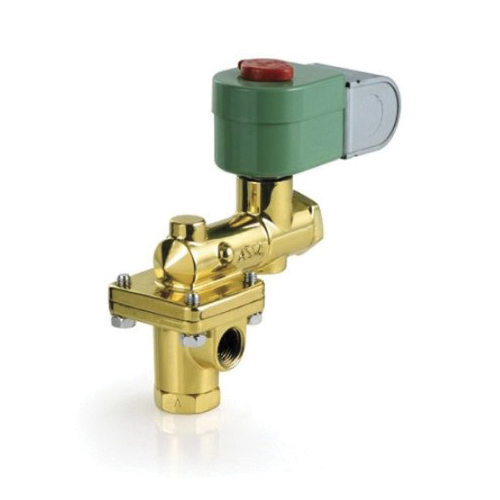

ASCO 8377-001 Shut-Off Valve

Asco 377 Series 8377-001 Shut-Off Valve, 3/8 in Nominal, NPT Connection, 3-Port/Way, 100 psi Pressure, 115 deg F

Asco 377 Series 8377-001 Shut-Off Valve, 3/8 in Nominal, NPT Connection, 3-Port/Way, 100 psi Pressure, 115 deg F 8377-001

The ASCO Series 377, also known as 8377, is a line of highly reliable combustion shut-off valves for fuel oil media. Their 3-way operation allows diversion of flow from a commercial or industrial oil burner to a recirculatory system and back to an oil tank.
ASCO Shut-Off Valve, Series: 377 Series, 3/8 in Nominal, NPT Connection, NPTF Port, 100 psi, Fuel Oil Media, 1/4 in Orifice, Class F Coil Insulation Class, 3, Brass Body, FKM Seal, FKM Disc, 115 deg F, Additional Information: Direct Acting, 15.4 W Wattage, 1 Cv Flow Factor, 120 V Coil Voltage, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil

Additional Information      :      Direct Acting, 15.4 W Wattage, 1 Cv Flow Factor, 120 V Coil Voltage, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil
Body Material      :      Brass
Coil Insulation Class      :      Class F
Connection Type      :      NPT
Disc Material      :      FKM
Media      :      Fuel Oil
Nominal Size      :      3/8 in
Number of Ports/Ways      :      3
Orifice Size      :      1/4 in
Port Type      :      NPTF
Pressure Rating      :      100 psi
Seal Material      :      FKM
Series      :      377 Series
Temperature Rating      :      115 deg F
  • General purpose enclosure with brass construction for durability and long life
  • Handles fuel oil up to 1500 SSU
  • Zero differential pressure
