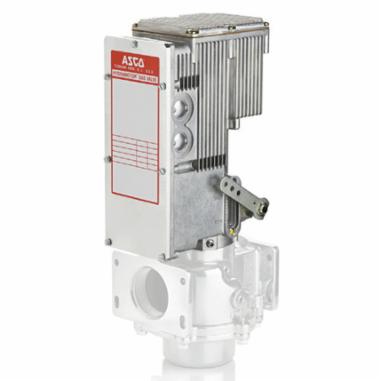

ASCO AH2E112A4 Hydramotor Valve Actuator
Asco Hydramotor® AH2E112A4 Valve Actuator, 2 -Ways/Position, 110/120 VAC, 220 VA VA
Asco Hydramotor® AH2E112A4 Valve Actuator, 2 -Ways/Position, 110/120 VAC, 220 VA VA AH2E112A4- Brand Name: ASCO
- Part Number: AH2E112A4
- Check Stock
Add To Favorites ListThe AH2E hydramotors are push-type, self-contained, electrohydraulic linear actuators which extend when powered and retract by spring force upon power interruption. AH2E hydramotors provide a fast spring return shutoff time of 1 s or less. When the actuator is mounted to a V710 gas valve, position indicators on both sides of the actuator show the open or closed position of the valve.
ASCO Hydramotor® Valve Actuator, Number of Ways/Position: 2, 5.6 A Inrush, 2.1 A Opening, 0.09 A Holding, 110/120 VAC, 50/60 Hz Frequency, VA Rating: 220 VA, 14 s Fast Open, 26 s Slow Open Timing, Gas Fuel, Screw Mounting, Aluminum Body, -40 to 150 deg F, Dimensions: 10.31 in L x 6.76 in W
| Amperage Rating | : | 5.6 A Inrush, 2.1 A Opening, 0.09 A Holding |
| Body Material | : | Aluminum |
| Dimensions | : | 10.31 in L x 6.76 in W |
| Frequency Rating | : | 50/60 Hz |
| Fuel Type | : | Gas |
| Mounting Type | : | Screw |
| Number of Ways/Position | : | 2 |
| Temperature Rating | : | -40 to 150 deg F |
| Timing Range | : | 14 s Fast Open, 26 s Slow Open |
| VA Rating | : | 220 VA |
| Voltage Rating | : | 110/120 VAC |
- On/off general-purpose and watertight actuator
