ASCO EF8210G035-120/60,110/50 EF8210G035-120/60,110/50

ASCO EF8210G035-120/60,110/50 Solenoid Valve

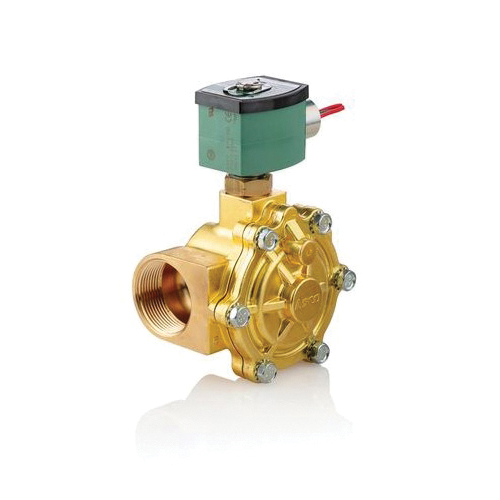

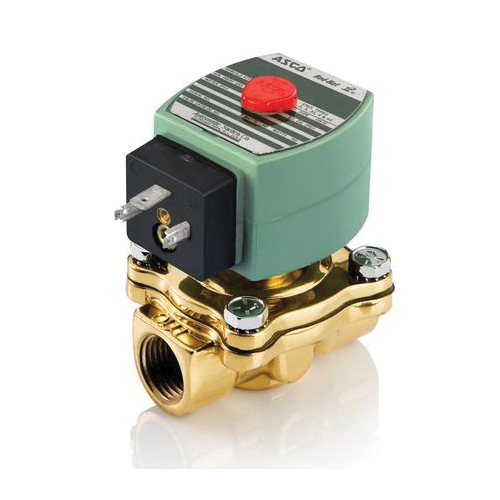

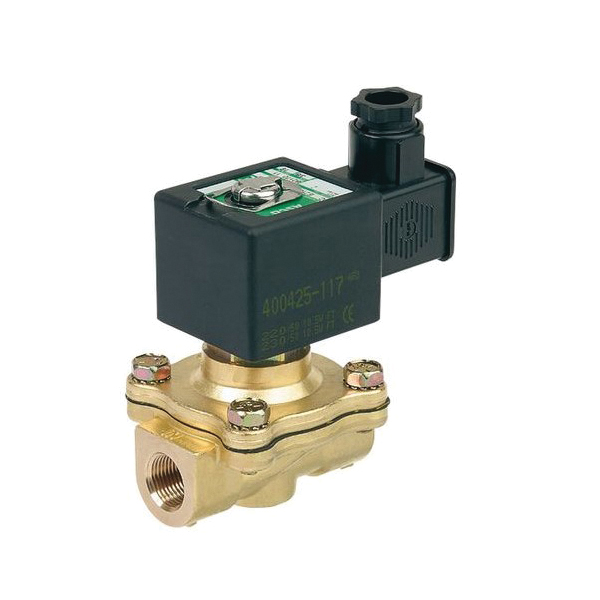

Asco 210 Series EF8210G035-120/60,110/50 Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Port/Way, 180 deg F

Asco 210 Series EF8210G035-120/60,110/50 Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Port/Way, 180 deg F EF8210G035-120/60,110/50

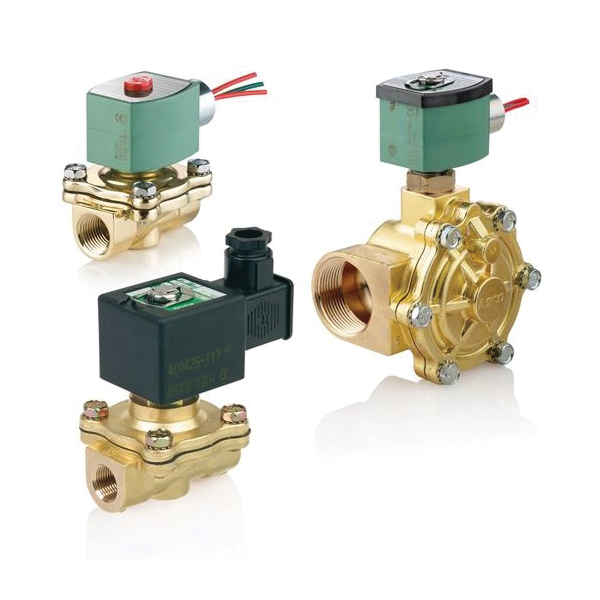

The ASCO Series 210 is a line of economical, high flow solenoid valves for liquid, corrosive and air/inert gas service. With a wide range of pressure ratings, sizes and resilient materials, the ultra reliable 2-way valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment and industrial water control.
ASCO Solenoid Valve, Series: 210 Series, 3/4 in Nominal, NPT Connection, NPT Port, Normally Open, Air, Fuel Gas, Inert Gas, Light Oil, Water Media, 3/4 in Orifice, Class F Coil Insulation Class, 2, Brass Body, NBR Seal, PTFE Disc, 180 deg F, 4.64 in H x 2.28 in W, Additional Information: Pilot Operated, 10.1 W Wattage, 0.5 Cv Flow Factor, 18 in L Lead, 25 VA Holding Current, FT Coil Class, 430F Stainless Steel Core and Plugnut, 305 Stainless Steel Core Tube, 302 Stainless Steel Spring, 110/120 VAC Voltage, 50/60 Hz Frequency

Additional Information      :      Pilot Operated, 10.1 W Wattage, 0.5 Cv Flow Factor, 18 in L Lead, 25 VA Holding Current, FT Coil Class, 430F Stainless Steel Core and Plugnut, 305 Stainless Steel Core Tube, 302 Stainless Steel Spring, 110/120 VAC Voltage, 50/60 Hz Frequency
Body Material      :      Brass
Coil Insulation Class      :      Class F
Configuration      :      Normally Open
Connection Type      :      NPT
Dimensions      :      4.64 in H x 2.28 in W
Disc Material      :      PTFE
Media      :      Air, Fuel Gas, Inert Gas, Light Oil, Water
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2
Orifice Size      :      3/4 in
Port Type      :      NPT
Seal Material      :      NBR
Series      :      210 Series
Temperature Rating      :      180 deg F
  • Low temperature models control cryogenic fluids, including liquid nitrogen (-320 deg F/-194 deg C), liquid argon (-303 deg F/-184 deg C) and liquid oxygen (-297 deg F/-181 deg C)
  • Valves can be specified for hot water service to 210 deg F/95 deg C for in laundry, boiler and heat exchanger applications
  • Ideal for high pressure control applications in commercial and industrial gas burners
  • Use to control liquid petroleum gases (propane) in grain dryers, incinerators and space heaters
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_HT8210G003V_120_60_110_50_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_HT8210G003V_120_60_110_50_Instruction_Installation_Manual.pdf
