ASCO EF8210G35-120 EF8210G35-120

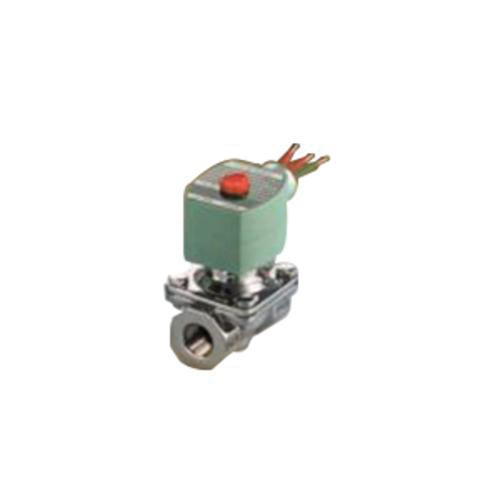

ASCO EF8210G35-120 Solenoid Valve

Asco RedHat 8210 EF8210G35-120 Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body

Asco RedHat 8210 EF8210G35-120 Solenoid Valve, 3/4 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, Brass Body EF8210G35-120

Asco RedHat Solenoid Valve, Series: 8210, 3/4 in Nominal, NPT, NO, 0 to 150 psi Air to Inert Gas and Water, 0 to 125 psi Light Oil at 300 SSU AC, 125 psi Air to Inert Gas and Water, 80 psi Light Oil at 300 SSU DC Differential, 3/4 in Orifice, Coil Insulation Class: F, 2-Way/2-Position Ports/Ways, NEMA 1, 2, 3, 3S, 4, 4X, Brass Body, NBR/PTFE Seal, NBR/PTFE Disc, 180 deg F AC, 150 deg F DC Fluid, 2.81 in L x 2.28 in W x 4.64 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NO
Connection Type      :      NPT
Dimensions      :      2.81 in L x 2.28 in W x 4.64 in H
Disc Material      :      NBR/PTFE
Enclosure Type      :      NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      3/4 in
Pressure Rating      :      0 to 150 psi Air to Inert Gas and Water, 0 to 125 psi Light Oil at 300 SSU AC, 125 psi Air to Inert Gas and Water, 80 psi Light Oil at 300 SSU DC Differential
Seal Material      :      NBR/PTFE
Series      :      8210
Temperature Rating      :      180 deg F AC, 150 deg F DC Fluid
  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High-flow valves for liquid, corrosive and air/inert gas service
  • Diaphragm construction
  • PA disc holder
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 70 V-A inrush power rating
  • 120 VAC at 60 Hz voltage rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8210G35_120_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8210G35_120_Instruction_Installation_Manual.pdf
