ASCO EF8344G070 EF8344G070

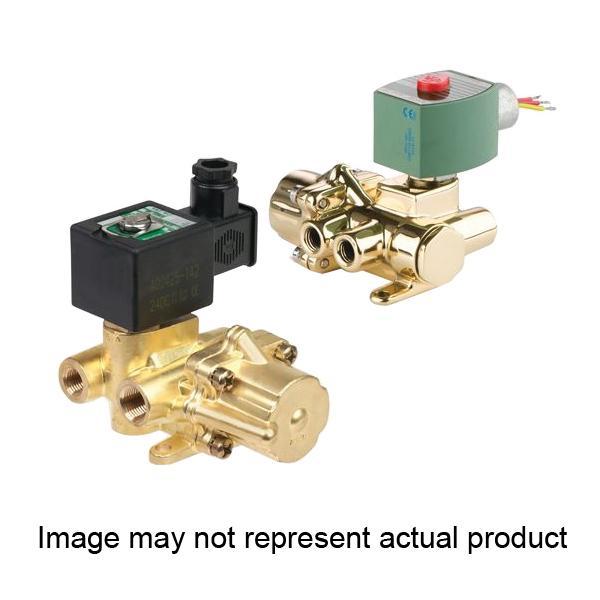

ASCO EF8344G070 Pilot Solenoid Valve

Asco 8344 EF8344G070 Pilot Solenoid Valve, 1/4 in Nominal, NPT Connection, 4-Ports/Ways, 125 psi, 150 psi Pressure

Asco 8344 EF8344G070 Pilot Solenoid Valve, 1/4 in Nominal, NPT Connection, 4-Ports/Ways, 125 psi, 150 psi Pressure EF8344G070

ASCO 344 Series valves incorporate a piston-operated poppet design for high flow in a variety of applications. Their sturdy, robust construction can be used with air or water media. The 344 Series is suitable for use in analytical and diagnostic instruments, biofuels, heating equipment, life science production and refining.
ASCO Pilot Solenoid Valve, Series: 8344, Nominal Size: 1/4 in, NPT Connection, Configuration: Inline Single, 125 psi, 150 psi Pressure, Media: Air, Inert Gas, Light Oil, Water, Orifice Size: 1/4 in, Top to Inlet Center: 3.12 in, 120/110 VDC, Amperage Rating: 25 VA, 10.1 W Power, 50/60 Hz Frequency, Coil Insulation Class: FT, Number of Ports/Ways: 4, Brass Body, NBR Seat, Seal Material: NBR, Disc Material: NBR, Softgoods Material: CA/Copper/Polyamide/Stainless Steel, 180 deg F, 4.08 in H x 4.75 in W Dimensions

Amperage Rating      :      25 VA
Body Material      :      Brass
Coil Insulation Class      :      FT
Configuration      :      Inline Single
Connection Type      :      NPT
Dimensions      :      4.08 in H x 4.75 in W
Disc Material      :      NBR
Frequency Rating      :      50/60 Hz
Media      :      Air, Inert Gas, Light Oil, Water
Nominal Size      :      1/4 in
Number of Ports/Ways      :      4
Orifice Size      :      1/4 in
Power Rating      :      10.1 W
Pressure Rating      :      125 psi, 150 psi
Seal Material      :      NBR
Seat Material      :      NBR
Series      :      8344
Softgoods Material      :      CA/Copper/Polyamide/Stainless Steel
Temperature Rating      :      180 deg F
Top to Inlet Center      :      3.12 in
Voltage Rating      :      120/110 VDC
  • Single or dual solenoid constructions come in a wide range of sizes and flow rates
  • Dual solenoid can be shifted with a momentary signal and remain in position even if electrical power is lost
  • Mountable in any position for installation flexibility
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8344G070_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8344G070_Instruction_Installation_Manual.pdf
