ASCO EF8344G1MO EF8344G1MO

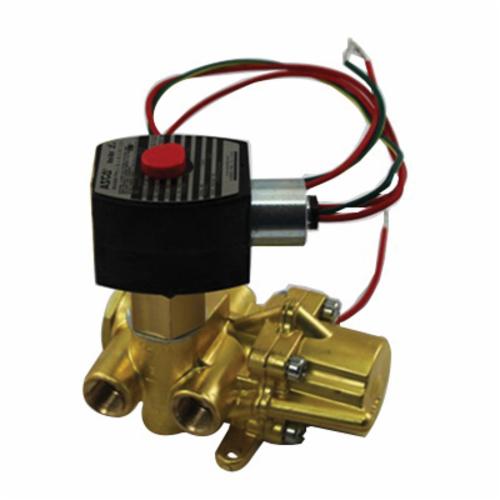

ASCO EF8344G1MO Piston/Poppet Pilot Solenoid Valve

Asco RedHat EF8344G1MO Piston/Poppet Solenoid Valve, 3/8 in Nominal, NPT Connection, 10 to 250 psi Pressure, Brass Body

Asco RedHat EF8344G1MO Piston/Poppet Solenoid Valve, 3/8 in Nominal, NPT Connection, 10 to 250 psi Pressure, Brass Body EF8344G1MO

Asco RedHat Piston/Poppet Solenoid Valve, 3/8 in Nominal, NPT Connection, 10 to 250 psi, 120 VAC at 60 Hz, 17.1 W AC, 22.6 W DC, F Coil Insulation Class, 4-Way Positions, Brass Body, NBR Seal, NBR Disc, 180 deg F Fluid, 32 to 125 deg F AC and 32 to 104 deg F DC Ambient, 4.08 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Connection Type      :      NPT
Dimensions      :      4.08 in H
Disc Material      :      NBR
Nominal Size      :      3/8 in
Number of Positions      :      4-Way
Power Rating      :      17.1 W AC, 22.6 W DC
Pressure Rating      :      10 to 250 psi
Seal Material      :      NBR
Temperature Rating      :      180 deg F Fluid, 32 to 125 deg F AC and 32 to 104 deg F DC Ambient
Voltage Rating      :      120 VAC at 60 Hz
  • The main discs are power driven in both directions by line pressure
  • No return springs are required
  • Sturdy, robust construction
  • Piston-operated poppet design provides high flow
  • Wide range of sizes and flow rates
  • Single solenoid constructions
  • Dual solenoid can be shifted with a momentary signal and remain in position even if electrical power is lost
  • Mountable in any position
  • 1/4 in orifice size
  • 1 Cv flow factor
  • 305 stainless steel core tube, 430F stainless steel core and plug nut, 302 stainless steel and 17-7PH stainless steel spring, copper shading coil, lead/copper shaft gasket
  • Explosionproof and watertight
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8344G1MO_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8344G1MO_Specification_Sheet.pdf
