ASCO EF8551A018MS EF8551A018MS

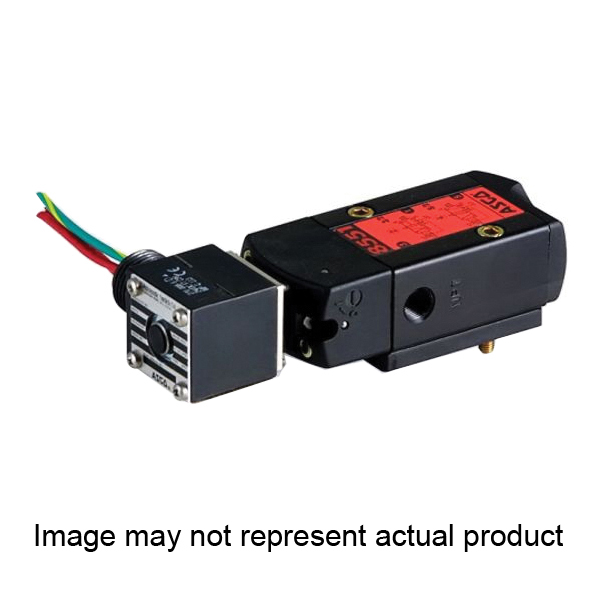

ASCO EF8551A018MS Pilot Solenoid Valve

Asco 8551 EF8551A018MS Pilot Solenoid Valve, 1/4 in Nominal, NPT Connection, 4-Ports/Ways, 150 psi Pressure

Asco 8551 EF8551A018MS Pilot Solenoid Valve, 1/4 in Nominal, NPT Connection, 4-Ports/Ways, 150 psi Pressure EF8551A018MS

Asco Pilot Solenoid Valve, Series: 8551, Nominal Size: 1/4 in, NPT Connection, Configuration: Inline Dual, 150 psi Pressure, Media: Air, Orifice Size: 1/4 in, 120 VAC, 6.3 W Power, 50 Hz Frequency, Coil Insulation Class: FT, Number of Ports/Ways: 4, Aluminum Body, Seal Material: NBR, Softgoods Material: Aluminum/Brass/CA/Copper/Stainless Steel, 104 deg F, 8.28 in L x 1.772 in W Dimensions

Body Material      :      Aluminum
Coil Insulation Class      :      FT
Configuration      :      Inline Dual
Connection Type      :      NPT
Dimensions      :      8.28 in L x 1.772 in W
Frequency Rating      :      50 Hz
Media      :      Air
Nominal Size      :      1/4 in
Number of Ports/Ways      :      4
Orifice Size      :      1/4 in
Power Rating      :      6.3 W
Pressure Rating      :      150 psi
Seal Material      :      NBR
Series      :      8551
Softgoods Material      :      Aluminum/Brass/CA/Copper/Stainless Steel
Temperature Rating      :      104 deg F
Voltage Rating      :      120 VAC
  • Mounted directly to actuators with NAMUR interface per VDI/VDE 3845 or threaded to mount on the pipe
  • Exhaust ports are pipeable, providing better protection against harsh environments
  • DIN, watertight and explosion-proof solenoids are available for use in mission critical and hazardous areas
  • Low power constructions are ideal for remote and alternative power locations
  • Integral breather block vents to spring side of the actuator to exhaust, preventing corrosion
  • Single and dual solenoid constructions are available that mount in any position
  • Global Ex approvals ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA, InMetro
  • All ports of NAMUR on the same side for a better water, dust protection
  • Compact spool valve convertible from 3/2 to 5/2 with a single flow plate design (551 Series only)
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_EF8551A018MS_Catalog.pdf
