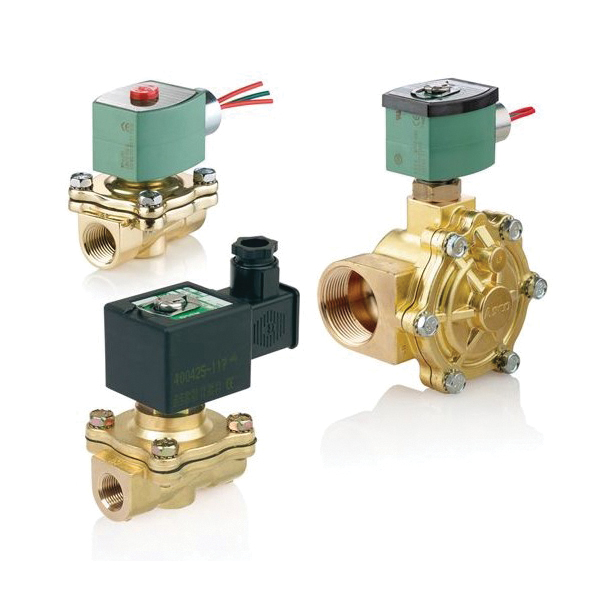

ASCO JB8210G054-120/60 Solenoid Valve
Asco 210 Series JB8210G054-120/60 Solenoid Valve, 1 in Nominal, NPT Connection, 2-Port/Way, 150 psi Pressure
Asco 210 Series JB8210G054-120/60 Solenoid Valve, 1 in Nominal, NPT Connection, 2-Port/Way, 150 psi Pressure JB8210G054-120/60- Brand Name: ASCO
- Part Number: JB8210G054-120/60
- Check Stock
Add To Favorites ListASCO product 8210G054 part of the 210 Series range of valves, is an ultra reliable 2-way solenoid valve, offered in a 1 in pipe size, providing long service life and low internal leakage.
ASCO Solenoid Valve, Series: 210 Series, 1 in Nominal, NPT Connection, NPT Port, Normally Closed, 150 psi, Air/Inert Gas, Liquid Media, 1 in Orifice, Class F Coil Insulation Class, 2, Brass Body, NBR Seal, PTFE Disc, 180 deg F, 5.13 in H x 3.27 in W, Additional Information: Pilot Operated, 16.1 W Wattage, 13 Cv Flow Factor, 35 VA Holding Current, 430F Stainless Steel Core and Plugnut, 305 Stainless Steel Core Tube, 302 Stainless Steel Spring, 110/120 VAC Voltage, 50/60 Hz Frequency
| Additional Information | : | Pilot Operated, 16.1 W Wattage, 13 Cv Flow Factor, 35 VA Holding Current, 430F Stainless Steel Core and Plugnut, 305 Stainless Steel Core Tube, 302 Stainless Steel Spring, 110/120 VAC Voltage, 50/60 Hz Frequency |
| Body Material | : | Brass |
| Coil Insulation Class | : | Class F |
| Configuration | : | Normally Closed |
| Connection Type | : | NPT |
| Dimensions | : | 5.13 in H x 3.27 in W |
| Disc Material | : | PTFE |
| Media | : | Air/Inert Gas, Liquid |
| Nominal Size | : | 1 in |
| Number of Ports/Ways | : | 2 |
| Orifice Size | : | 1 in |
| Port Type | : | NPT |
| Pressure Rating | : | 150 psi |
| Seal Material | : | NBR |
| Series | : | 210 Series |
| Temperature Rating | : | 180 deg F |
- Wide range of pressure ratings, sizes and resilient materials provides long service life and low internal leakage
- High flow valves for liquid, corrosive and air/inert gas service
Catalog
