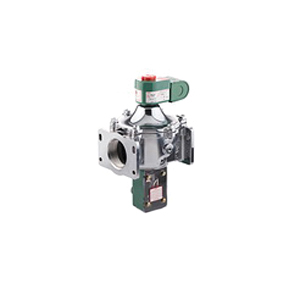

ASCO JB8214260CSA Solenoid Valve
Asco RedHat JB8214260CSA Solenoid Valve, 1-1/4 in Nominal, 2 -Port/Way, 1726 cfh, 0 to 5 psi Differential Pressure
Asco RedHat JB8214260CSA Solenoid Valve, 1-1/4 in Nominal, 2 -Port/Way, 1726 cfh, 0 to 5 psi Differential Pressure JB8214260CSA- Brand Name: ASCO
- Part Number: JB8214260CSA
- Check Stock
Add To Favorites ListAsco RedHat Solenoid Valve, 1-1/4 in Nominal, NC, 0 to 5 psi Differential, 1726 cfh, Media: Fuel, 1 in Orifice, Coil Insulation Class: F, H, B, 2 Positions, 2 Ports/Ways, NEMA 1, Aluminum Body, NBR Seal, NBR Disc, 125 deg F AC Fluid, 5.3 in L x 5.39 in W x 10.99 in H
| Body Material | : | Aluminum |
| Coil Insulation Class | : | F, H, B |
| Configuration | : | NC |
| Dimensions | : | 5.3 in L x 5.39 in W x 10.99 in H |
| Disc Material | : | NBR |
| Enclosure Type | : | NEMA 1 |
| Flow Rate | : | 1726 cfh |
| Media | : | Fuel |
| Nominal Size | : | 1-1/4 in |
| Number of Ports/Ways | : | 2 |
| Number of Positions | : | 2 |
| Orifice Size | : | 1 in |
| Pressure Rating | : | 0 to 5 psi Differential |
| Seal Material | : | NBR |
| Temperature Rating | : | 125 deg F AC Fluid |
- Unique double disc design with over travel provides redundant sealing for leak tight shut-off
- 1/8 in NPT pipe taps with plugs for routine testing
- Optional flange adapters for ease of installation and service
- 305 stainless steel core tube, 430F stainless steel core and plug nut, 302 stainless steel springs
- POM core guide
- PTFE rider rings
- Copper shading coil
- Zinc-plated steel pipe plug
- Junction Box construction with (2) 7/8 in Dia knock-outs
- RedHat metal type 1 general purpose housing has a 7/8 in Dia hole to accept standard conduit hubs or connectors
- Two-SPDT module Two-sensor
- 1725500 Btu/hr nominal capacity
- 120 VAC at 60 Hz voltage rating
