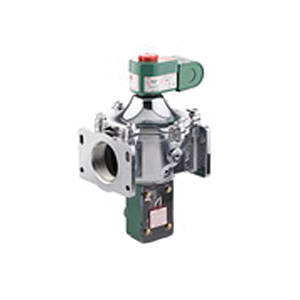

ASCO JB8214270CSA Solenoid Valve With Flange
Asco RedHat JB8214270CSA Solenoid Valve With Flange, 1-1/2 in Nominal, NPT Connection, 2 -Port/Way, 1887 cfh
Asco RedHat JB8214270CSA Solenoid Valve With Flange, 1-1/2 in Nominal, NPT Connection, 2 -Port/Way, 1887 cfh JB8214270CSA- Brand Name: ASCO
- Part Number: JB8214270CSA
- Check Stock
Add To Favorites ListAsco RedHat Solenoid Valve, 1-1/2 in Nominal, NPT, NC, 0 to 5 psi Differential, 1887 cfh, Media: Fuel, 1-1/2 in Orifice, Coil Insulation Class: F, 2 Positions, 2 Ports/Ways, NEMA 1, Aluminum Body, NBR Seal, NBR Disc, 125 deg F AC Fluid, 5.3 in L x 5.39 in W x 6.97 in H
| Body Material | : | Aluminum |
| Coil Insulation Class | : | F |
| Configuration | : | NC |
| Connection Type | : | NPT |
| Dimensions | : | 5.3 in L x 5.39 in W x 6.97 in H |
| Disc Material | : | NBR |
| Enclosure Type | : | NEMA 1 |
| Flow Rate | : | 1887 cfh |
| Media | : | Fuel |
| Nominal Size | : | 1-1/2 in |
| Number of Ports/Ways | : | 2 |
| Number of Positions | : | 2 |
| Orifice Size | : | 1-1/2 in |
| Pressure Rating | : | 0 to 5 psi Differential |
| Seal Material | : | NBR |
| Temperature Rating | : | 125 deg F AC Fluid |
- Unique double disc design with over travel provides redundant sealing for leak tight shut-off
- 1/8 in NPT pipe taps with plugs for routine testing
- Flange adapters for ease of installation and service
- 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
- POM core guide
- PTFE rider rings
- Copper shading coil
- Zinc-plated steel pipe plug
- Junction Box construction with (2) 7/8 in Dia knock-outs
- RedHat metal type 1 general purpose housing has a 7/8 in Dia hole to accept standard conduit hubs or connectors
- Two-SPDT module Two-sensor
- 1887200 Btu/hr nominal capacity
- 110 - 120 VAC voltage rating
