ASCO JB8214290CSA-120/60 JB8214290CSA-120/60

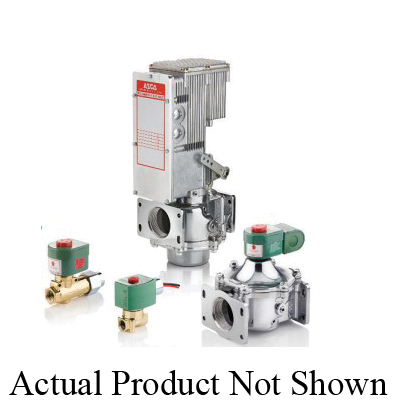

ASCO JB8214290CSA-120/60 Solenoid Valve

Asco JB8214290CSA-120/60 Solenoid Valve, 2-1/2 in Nominal, 2-Port/Way, 0 to 15 psi Pressure, 125 deg F

Asco JB8214290CSA-120/60 Solenoid Valve, 2-1/2 in Nominal, 2-Port/Way, 0 to 15 psi Pressure, 125 deg F JB8214290CSA-120/60

Asco Solenoid Valve, 2-1/2 in Nominal, Normally Closed, 0 to 15 psi, Fuel Gas Media, 3 in Orifice, 2, Aluminum Body, NBR Seal, 125 deg F, Additional Information: 20 W Wattage, 104 Cv Flow Factor, 110/120 VAC Voltage, 50/60 Hz Frequency, 5765500 Btu/hr Capacity

Additional Information      :      20 W Wattage, 104 Cv Flow Factor, 110/120 VAC Voltage, 50/60 Hz Frequency, 5765500 Btu/hr Capacity
Body Material      :      Aluminum
Configuration      :      Normally Closed
Media      :      Fuel Gas
Nominal Size      :      2-1/2 in
Number of Ports/Ways      :      2
Orifice Size      :      3 in
Pressure Rating      :      0 to 15 psi
Seal Material      :      NBR
Temperature Rating      :      125 deg F
  • Two-way (2/2) normally closed (shut-off) and normally open (vent) operations
  • Solenoid operated (electrically), cable operated (mechanical operation for range hoods), manual reset (conjunction of solenoid and manual operation), electro hydraulically operated (electric motor using hydraulic pumps for operation)
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_S261SG02N3JK4_Catalog.pdf
