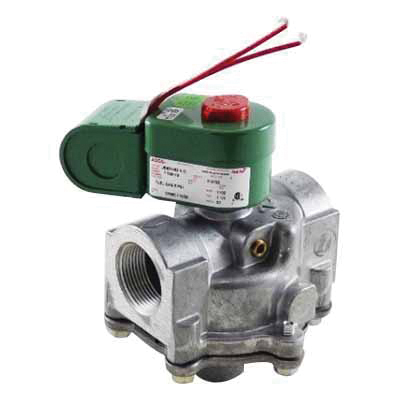

ASCO JB821463CSA Solenoid Valve
Asco JB821463CSA Solenoid Valve, 1-1/4 in Nominal, NPT Connection, 2-Way -Port/Way, 0 to 5 psi Pressure, Aluminum Body
Asco JB821463CSA Solenoid Valve, 1-1/4 in Nominal, NPT Connection, 2-Way -Port/Way, 0 to 5 psi Pressure, Aluminum Body JB821463CSA- Brand Name: ASCO
- Part Number: JB821463CSA
- Check Stock
Add To Favorites ListAsco Solenoid Valve, 1-1/4 in Nominal, NPT, NO, 0 to 5 psi, Media: Gas, 2-Way Ports/Ways, Aluminum Body
| Body Material | : | Aluminum |
| Configuration | : | NO |
| Connection Type | : | NPT |
| Media | : | Gas |
| Nominal Size | : | 1-1/4 in |
| Number of Ports/Ways | : | 2-Way |
| Pressure Rating | : | 0 to 5 psi |
- Normally open vent
- Valve bodies are made of rugged aluminum with trim and internal parts made of steel and stainless steel
- Provided with a general purpose, general purpose junction box or watertight/explosion-proof solenoid depending upon basic valve construction
- Provided with a 1/8 NPT tapped and plugged hole for downstream seat leakage testing
- Valve is open when solenoid is de-energized and closed when energized
- With junction box
- 120 V voltage rating
Instruction/Installation Manual
