ASCO K3A541U K3A541U

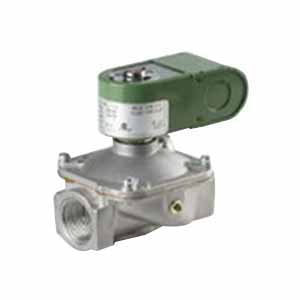

ASCO K3A541U Solenoid Valve

Asco K3A541U Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 0 to 6 psi Pressure

Asco K3A541U Solenoid Valve, 1/2 in Nominal, NPT Connection, 2-Way/2-Position -Port/Way, 0 to 6 psi Pressure K3A541U

Asco Solenoid Valve, 1/2 in Nominal, NPT, NC, 0 to 6 psi, 11/16 in Orifice, Coil Insulation Class: N, 2-Way/2-Position Ports/Ways, NEMA 1, Die-Cast Aluminum Body, NBR Seal, NBR Disc, -40 to 175 deg F, 2-3/4 in L x 2.63 in W x 4-1/4 in H

Body Material      :      Die-Cast Aluminum
Coil Insulation Class      :      N
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2-3/4 in L x 2.63 in W x 4-1/4 in H
Disc Material      :      NBR
Enclosure Type      :      NEMA 1
Nominal Size      :      1/2 in
Number of Ports/Ways      :      2-Way/2-Position
Orifice Size      :      11/16 in
Pressure Rating      :      0 to 6 psi
Seal Material      :      NBR
Temperature Rating      :      -40 to 175 deg F
  • 302 stainless steel washer, 305 stainless steel core tube, 430F stainless steel core and plugnut, 302F stainless steel springs
  • CA core guide
  • Valves provided with 1/8 in NPT upstream and downstream pipe tap with plug for routine testing
  • Copper shading coil
  • Zinc-plated steel pipe plug
  • Less than 1 sec valve opening and closing time
  • 350000 Btu/hr at 1 in WC pressure drop nominal capacity
  • 24 VAC at 60 Hz voltage rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_K3A541U_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_K3A541U_Specification_Sheet.pdf
