ASCO S262SH02N3JK4 S262SH02N3JK4

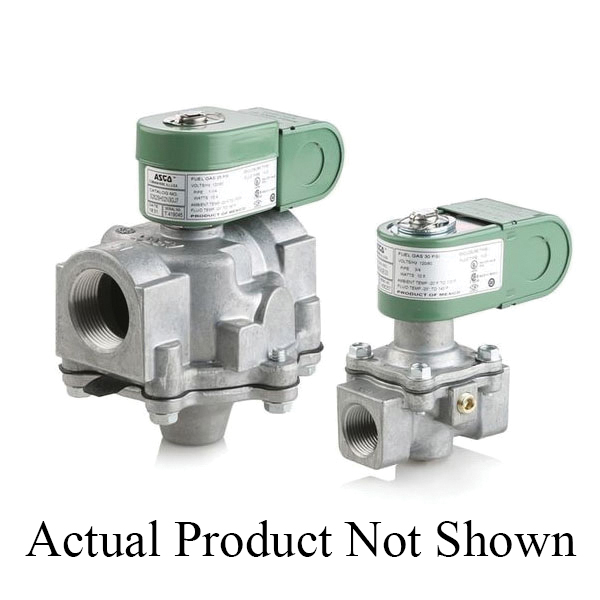

ASCO S262SH02N3JK4 Gas Vent Valve

Asco S262SH02N3JK4 Gas Vent Valve, 2 in Nominal

Asco S262SH02N3JK4 Gas Vent Valve, 2 in Nominal S262SH02N3JK4

The ASCO Series S262 is a line of fuel gas valves for venting gas combustion systems in heating equipment. If there is a leak when the system is off, the gas is vented through the valve. The two-way normally open valve has a die cast aluminum body and a zero differential piloted diaphragm.
ASCO Gas Vent Valve, Series: S262, 2 in Nominal, 2, 150 psig, 84 Cv Flow Coefficient (Cv), Solenoid Operator, Stainless Steel Trim, Nitrile Rubber Disc, Nitrile Rubber Seal, Aluminum, 120 VAC, 60 Hz, 4529300 Btu/hr, -20 to 170 deg F

BTU Rating      :      4529300 Btu/hr
Disc Material      :      Nitrile Rubber
Flow Coefficient (Cv)      :      84 Cv
Frequency Rating      :      60 Hz
Material      :      Aluminum
Nominal Size      :      2 in
Number of Ways/Position      :      2
Operator Type      :      Solenoid
Pressure Rating      :      150 psig
Seal Material      :      Nitrile Rubber
Series      :      S262
Temperature Rating      :      -20 to 170 deg F
Trim Material      :      Stainless Steel
Voltage Rating      :      120 VAC
  • Wide range of flow capacities to meet most burner size requirements
  • Fast opening time of less than 1 s
  • Valves provided with pipe tap(s) with plug for routine testing
  • Suitable for ambient temperatures up to 175 deg F
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_S262SH02N3JK4_Specification_Sheet.pdf
