ASCO SC8238T405 SC8238T405

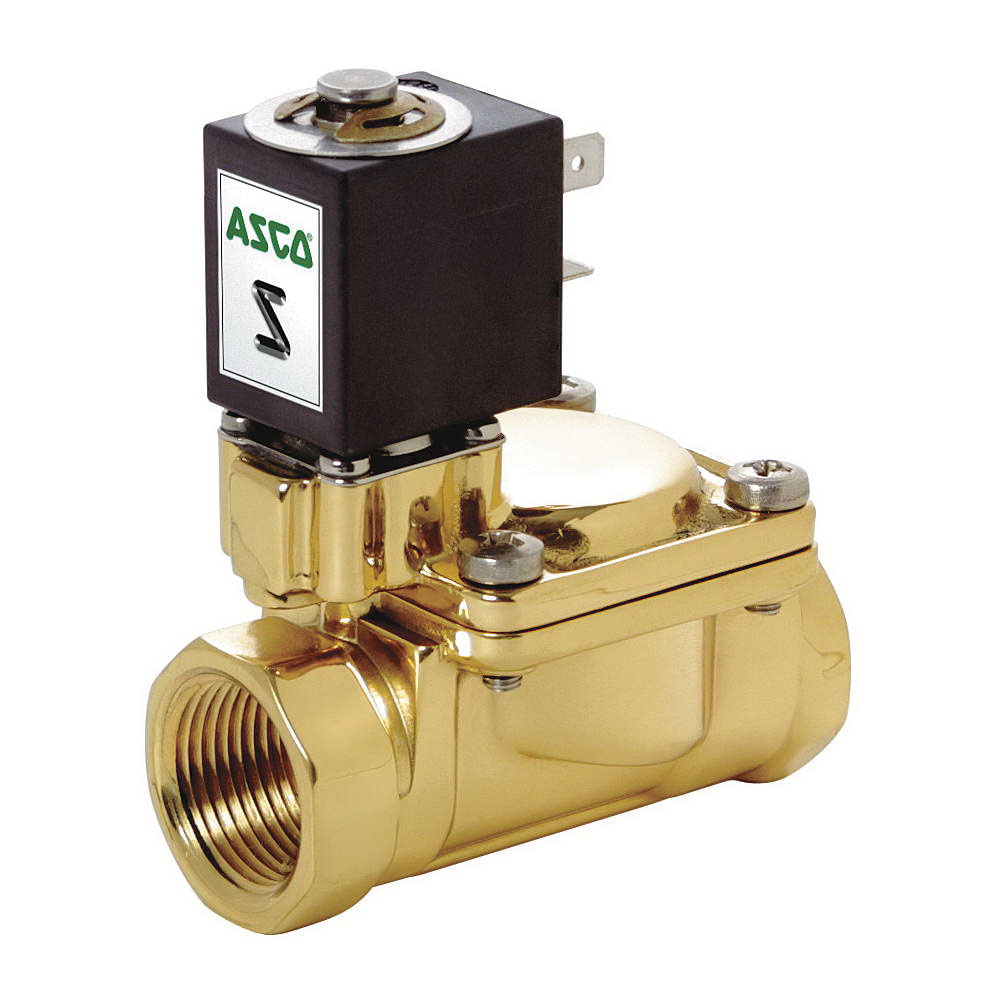

ASCO SC8238T405 Solenoid Valve

Asco RedHat SC8238T405 Solenoid Valve, 1/2 in Nominal, NPT Connection, 2 -Port/Way, 195 deg F Fluid, Brass Body

Asco RedHat SC8238T405 Solenoid Valve, 1/2 in Nominal, NPT Connection, 2 -Port/Way, 195 deg F Fluid, Brass Body SC8238T405

Asco RedHat Solenoid Valve, 1/2 in Nominal, NPT, NC, 5 to 230 psi Air to Inert Gas, Water, Light Oil AC and DC Differential, Media: Air, Inert Gas, Water, Light Oil, 17/32 in Orifice, Coil Insulation Class: F, 2 Positions, 2 Ports/Ways, Brass Body, Brass Seal, 195 deg F Fluid, 2.6 in L x 1.57 in W x 3.43 in H

Body Material      :      Brass
Coil Insulation Class      :      F
Configuration      :      NC
Connection Type      :      NPT
Dimensions      :      2.6 in L x 1.57 in W x 3.43 in H
Media      :      Air, Inert Gas, Water, Light Oil
Nominal Size      :      1/2 in
Number of Ports/Ways      :      2
Number of Positions      :      2
Orifice Size      :      17/32 in
Pressure Rating      :      5 to 230 psi Air to Inert Gas, Water, Light Oil AC and DC Differential
Seal Material      :      Brass
Temperature Rating      :      195 deg F Fluid
  • Comes standard with DIN connection coils
  • Stainless steel core tube, core, plugnut and springs
  • Copper shading coil
  • 4 W AC, 5.5 W DC power rating
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Asco_SC8238T405_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_SC8238T405_Specification_Sheet.pdf
