ASCO SCB266D011V SCB266D011V

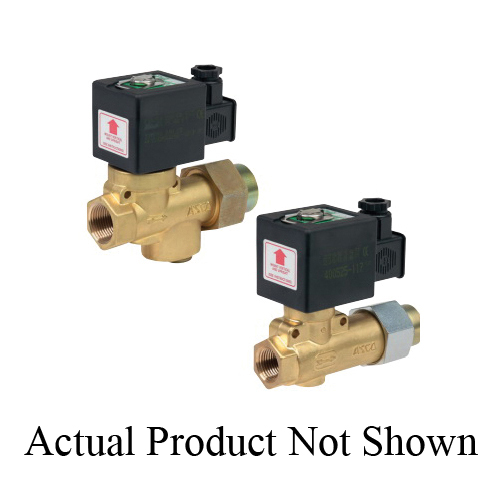

ASCO SCB266D011V Solenoid Valve

Asco 266 SCB266D011V Solenoid Valve, 1/2 in Nominal, NPT Connection, 17 to 21 bar Pressure, -20 to 125 deg C

Asco 266 SCB266D011V Solenoid Valve, 1/2 in Nominal, NPT Connection, 17 to 21 bar Pressure, -20 to 125 deg C SCB266D011V

Asco Solenoid Valve, Series: 266, 1/2 in Nominal Size, NPT Connection, 17 to 21 bar Pressure, Lever Actuator, 4 to 8 mm Orifice, F Coil Insulation Class, Screw Terminal Coil, NEMA Enclosure, Brass Body, FPM Seat, FPM Seal, Stainless Steel Disc, -20 to 125 deg C

Actuator Type      :      Lever
Body Material      :      Brass
Coil Insulation Class      :      F
Coil Type      :      Screw Terminal
Connection Type      :      NPT
Disc Material      :      Stainless Steel
Enclosure Type      :      NEMA
Nominal Size      :      1/2 in
Orifice Size      :      4 to 8 mm
Pressure Rating      :      17 to 21 bar
Seal Material      :      FPM
Seat Material      :      FPM
Series      :      266
Temperature Rating      :      -20 to 125 deg C
  • Forged brass bodied lever actuated valves for fuel oil #2, 4 (10-64 cSt), heavy fuel oil #5 (75-160 cSt) and heated #6 (90-640 cSt)
  • The valves have a 1/2 in NPT (bypass) connection for preheating purpose of the medium
  • Solenoid valves have a FKM seal for absolute tight shut-off or a stainless steel seating for a long life and reliable control
  • The solenoid valves satisfy all relevant EU directives
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_SCB266D011V_Specification_Sheet.pdf
