ASCO SV311A02N6AF5 SV311A02N6AF5

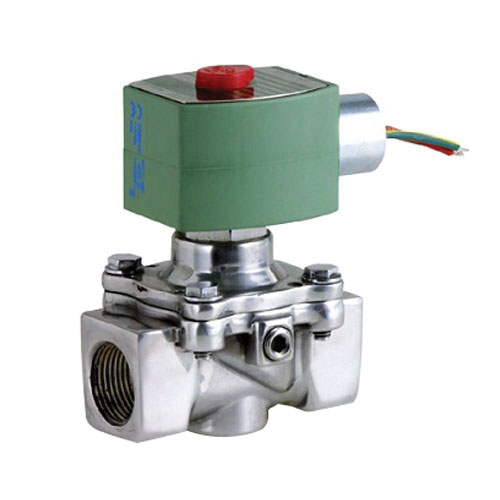

ASCO SV311A02N6AF5 Solenoid Gas Shut-Off Valve

Asco SV311A02N6AF5 Solenoid Gas Shut-Off Valve, 1/8 in Nominal, Threaded Connection, 2 -Port/Way, Aluminum Body

Asco SV311A02N6AF5 Solenoid Gas Shut-Off Valve, 1/8 in Nominal, Threaded Connection, 2 -Port/Way, Aluminum Body SV311A02N6AF5

Asco Solenoid Gas Shut-Off Valve, 1/8 in Nominal, Threaded, 0 to 15 psi Differential, 120 VAC at 60 Hz, 6.1 W, 2 Ports/Ways, Aluminum Body, NBR Seal, NBR Disc, -40 to 175 deg F, 125 deg F Fluid, 2.92 in L x 1.68 in W x 2.76 in H

Body Material      :      Aluminum
Connection Type      :      Threaded
Dimensions      :      2.92 in L x 1.68 in W x 2.76 in H
Disc Material      :      NBR
Nominal Size      :      1/8 in
Number of Ports/Ways      :      2
Power Rating      :      6.1 W
Pressure Rating      :      0 to 15 psi Differential
Seal Material      :      NBR
Temperature Rating      :      -40 to 175 deg F, 125 deg F Fluid
Voltage Rating      :      120 VAC at 60 Hz
  • Direct lift with resilient soft seating for tight shut-off
  • Valves provided with 1/8 in NPT downstream pipe tap with plug for routine testing
  • Lightweight, low-cost valves for air service
  • Ideal for low pressure applications
  • Air and vacuum service
  • 305 Stainless Steel Core Tube, 430F stainless steel core and plugnut
  • 17-7PH springs
  • Copper shading coil
  • Zinc-plated steel pipe plug
  • Watertight, types 1, 2, 3, 3S, 4 and 4X with 1/2 in conduit hub solenoid enclosures
  • Less than 1 sec valve opening and closing time
  • Mountable in any position
  • 53700 Btu/hr nominal capacity
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_SV311A02N6AF5_Specification_Sheet.pdf
