ASCO SV311A02N6CF5 SV311A02N6CF5

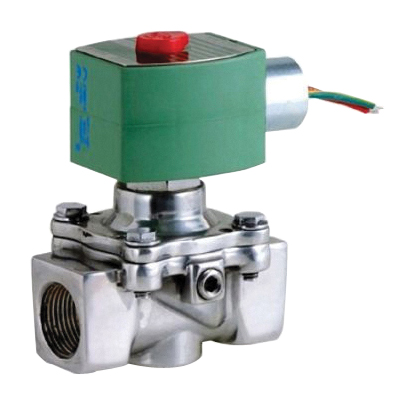

ASCO SV311A02N6CF5 Gas Shut-Off Valve

Asco SV311 SV311A02N6CF5 Gas Shut-Off Valve, 3/8 in Nominal, FNPT End, 0 to 15 psi Pressure, Aluminum Body

Asco SV311 SV311A02N6CF5 Gas Shut-Off Valve, 3/8 in Nominal, FNPT End, 0 to 15 psi Pressure, Aluminum Body SV311A02N6CF5

The ASCO Series SV311 are highly reliable gas safety shut-off valves for control of commercial and industrial gas burners found in generators, heating equipment and ovens. The valves are designed with two way, normally closed operation and have direct lift with resilient soft seating for tight shut-off.
ASCO Gas Shut-Off Valve, Series: SV311, Nominal Size: 3/8 in, FNPT End, 0 to 15 psi Pressure, 125 deg F, 2-Way NC Port, Media: Natural Gas, Actuator Type: Solenoid, Inlet to Outlet Length: 2.92 in, Aluminum Body, Trim Material: Copper/Stainless Steel/Zinc-Plated Steel, Softgoods Material: NBR, 1.68 in Width, 2.76 in Height, 2 in Depth

Actuator Type      :      Solenoid
Body Material      :      Aluminum
Depth      :      2 in
End Type      :      FNPT
Height      :      2.76 in
Inlet to Outlet Length      :      2.92 in
Media      :      Natural Gas
Nominal Size      :      3/8 in
Port Type      :      2-Way NC
Pressure Rating      :      0 to 15 psi
Series      :      SV311
Softgoods Material      :      NBR
Temperature Rating      :      125 deg F
Trim Material      :      Copper/Stainless Steel/Zinc-Plated Steel
Width      :      1.68 in
  • Available in 1/8 in to 3/8 in sizes
  • Provided with 1/8 in NPT downstream pipe tap with plug for routine testing
  • Opening and closing times are less than 1 s
  • Suitable for ambient temperatures up to 175 deg F
  • Mountable in any position for easy installation
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Asco_SV311A02N6CF5_Specification_Sheet.pdf
