Browning® 1C56P 1C56P

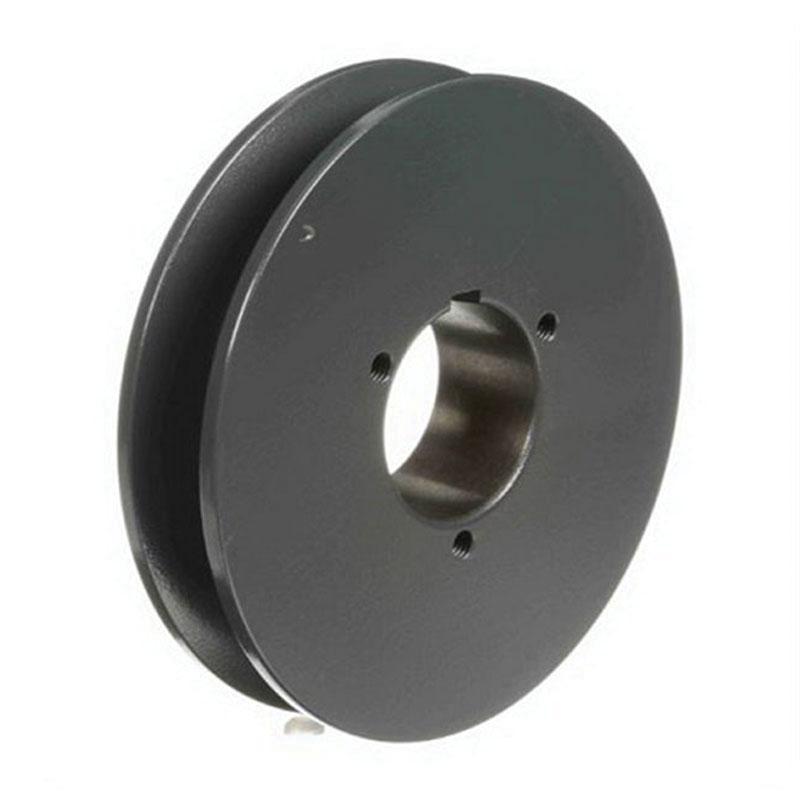

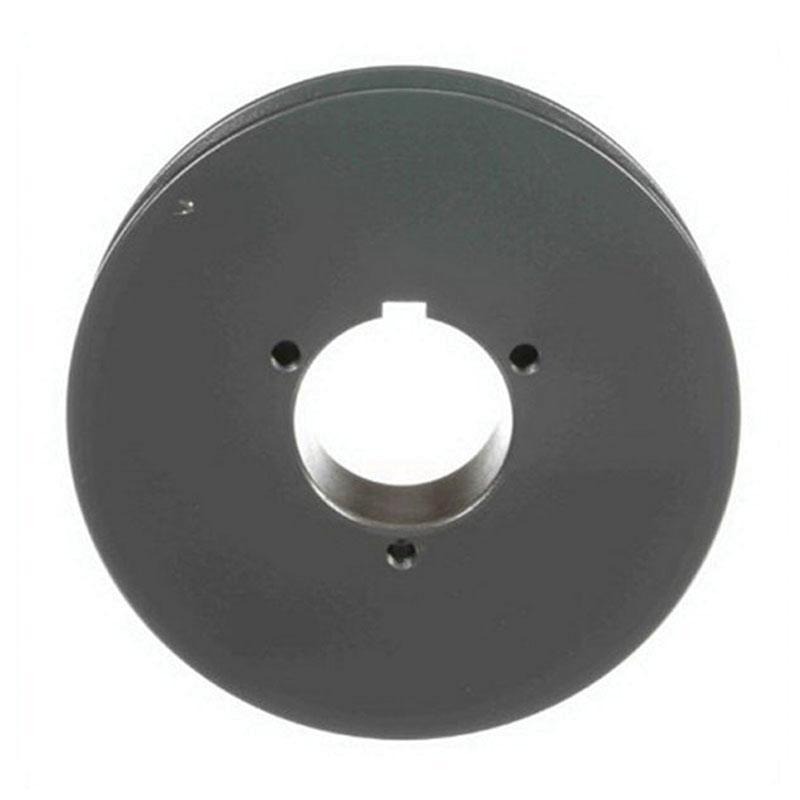

Browning 1C56P Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 6 in Dia Pitch

Browning® 1C56P Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 6 in Dia Pitch

Browning® 1C56P Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 6 in Dia Pitch 1C56P

Browning® Multiple Sheave, Split Taper Bushed Bore, 1/2 in Bore Diameter, C Belt Section Size, P1 Bushing Style, 1 Number of Grooves, 6 in Pitch Diameter, 3/8 in Keyway Size, Iron, 2.14 in L x 2.18 in W

Belt Section Size      :      C
Bore Diameter      :      1/2 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      P1
Dimensions      :      2.14 in L x 2.18 in W
Keyway Size      :      3/8 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      6 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1C56P_Line_Drawing.pdf
