Browning® 1H3V31 1H3V31

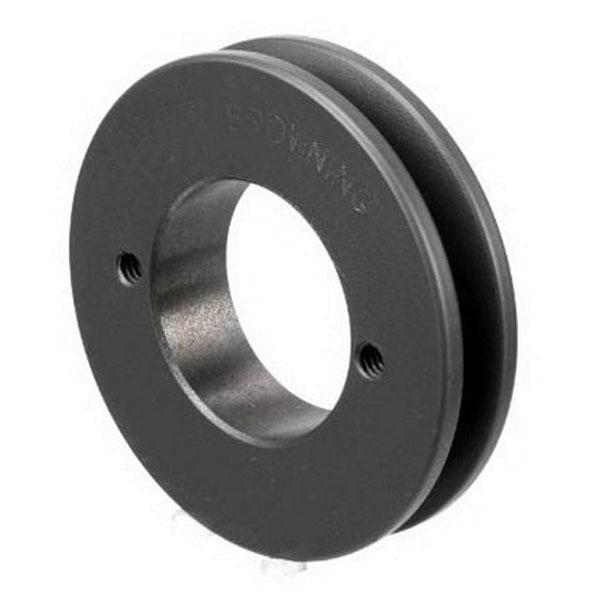

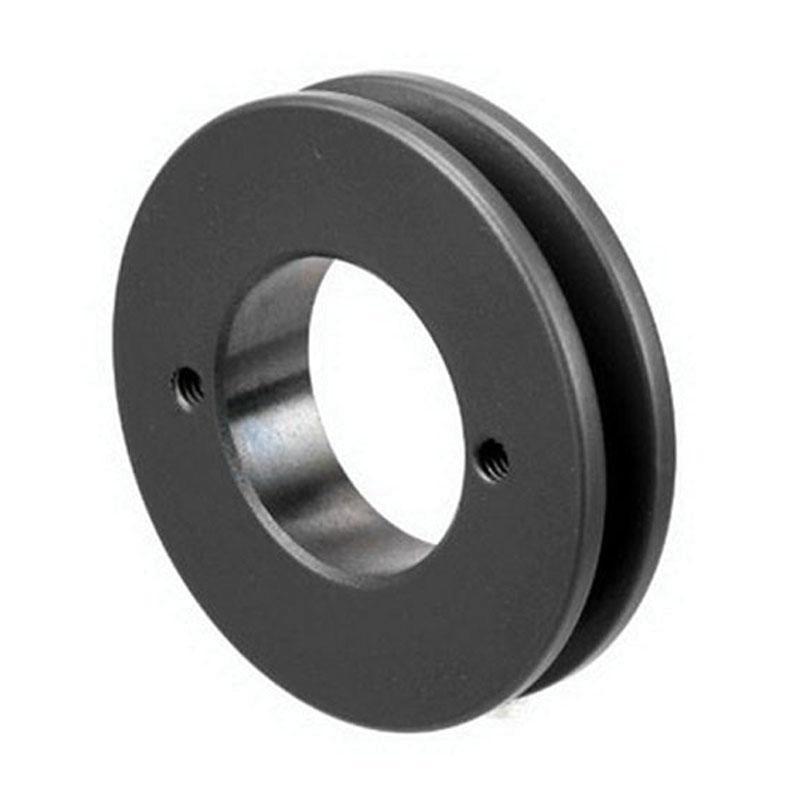

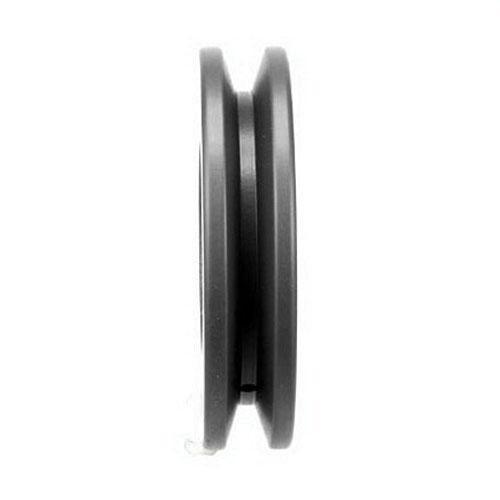

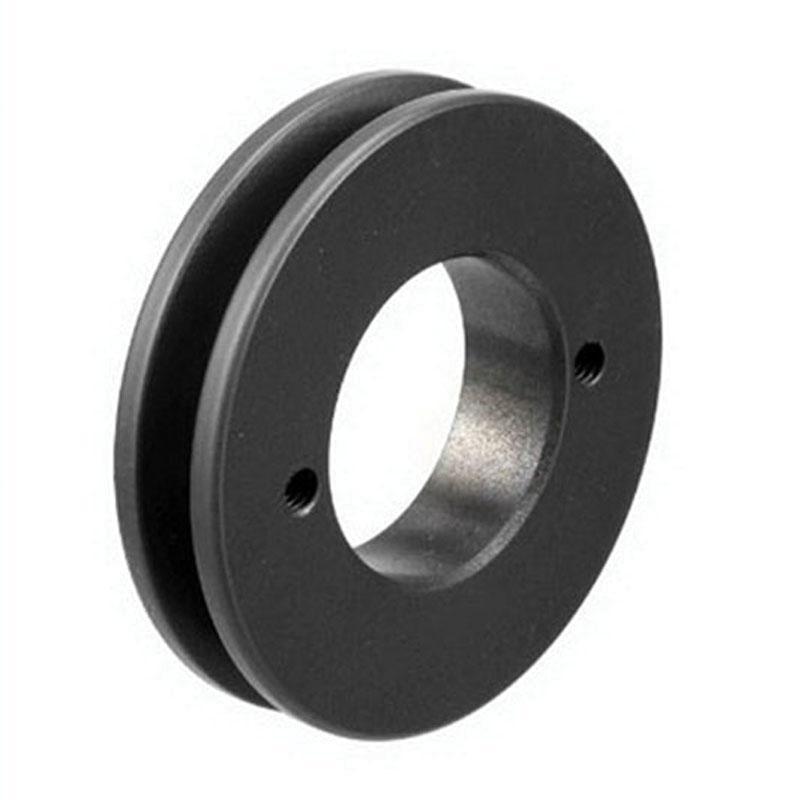

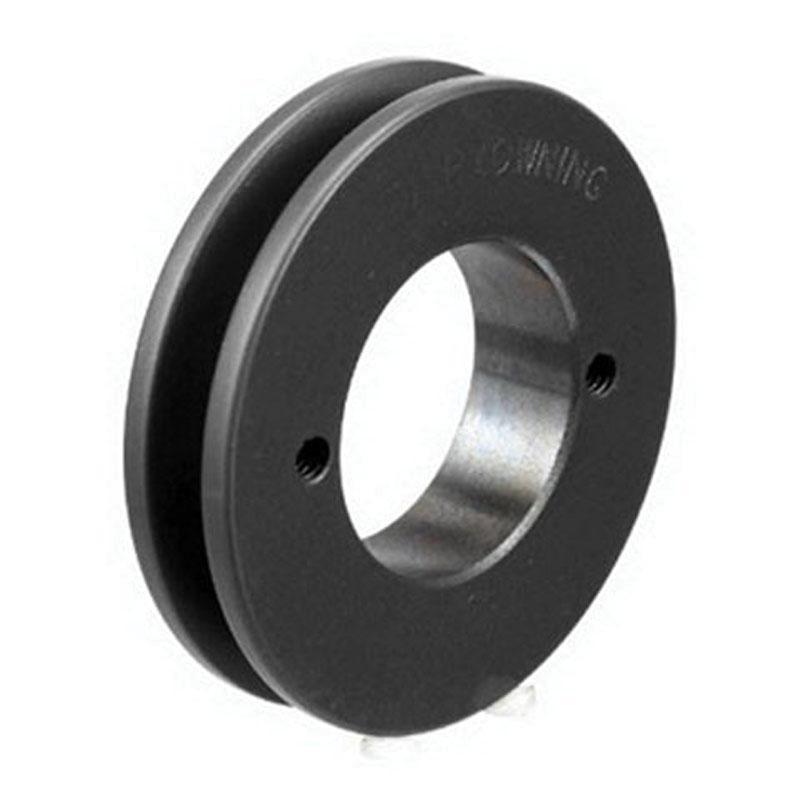

Browning 1H3V31 Multiple Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 11/16 in W Face, 3.1 in Dia Pitch

Browning® 1H3V31 Multiple Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 11/16 in W Face, 3.1 in Dia Pitch

Browning® 1H3V31 Multiple Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 11/16 in W Face, 3.1 in Dia Pitch 1H3V31

Browning® Multiple Sheave, Split Taper Bushed Bore, 3/8 in Bore Diameter, 3V Belt Section Size, H Bushing Style, 1 Number of Grooves, 3.1 in Pitch Diameter, 11/16 in Face Width, Iron, 1-5/16 in L x 1-7/16 in W

Belt Section Size      :      3V
Bore Diameter      :      3/8 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      H
Dimensions      :      1-5/16 in L x 1-7/16 in W
Face Width      :      11/16 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      3.1 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1H3V31_Line_Drawing.pdf
