Browning® 1046325 1046325

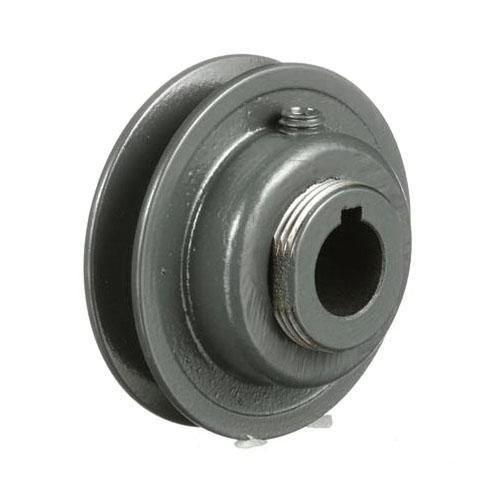

Browning 1VL 1046325 Sheave With Keyway Bore, Finished with Keyway Bore, 5/8 in Dia Bore, 17/32-25/32 in W Face

Browning® 1VL Series 1046325 Sheave With Keyway Bore, Finished with Keyway Bore, 5/8 in Dia Bore

Browning® 1VL Series 1046325 Sheave With Keyway Bore, Finished with Keyway Bore, 5/8 in Dia Bore 1046325

Browning® Sheave, Series: 1VL Series, Finished with Keyway Bore, 5/8 in Bore Diameter, 3L Belt Section Size, 1 Number of Grooves, 1.6 to 2.4 in Pitch Diameter, 1-11/16 in Length Through Bore, 17/32 to 25/32 in Face Width, 3/16 x 3/32 in Keyway Size, Iron, 2-1/2 in OD x 1-11/16 in L x 3/8 in W

Belt Section Size      :      3L
Bore Diameter      :      5/8 in
Bore Type      :      Finished with Keyway
Dimensions      :      2-1/2 in OD x 1-11/16 in L x 3/8 in W
Face Width      :      17/32 to 25/32 in
Keyway Size      :      3/16 x 3/32 in
Length Through Bore      :      1-11/16 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      1.6 to 2.4 in
Series      :      1VL Series
  • Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
  • Furnished with standard keyseats and hollow head setscrews
  • pdfInstruction/Installation Manual https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045475_Instruction_Installation_Manual.pdf
