Browning® 1VL34X5/8 CLEAR PK 1VL34X5/8 CLEAR PK

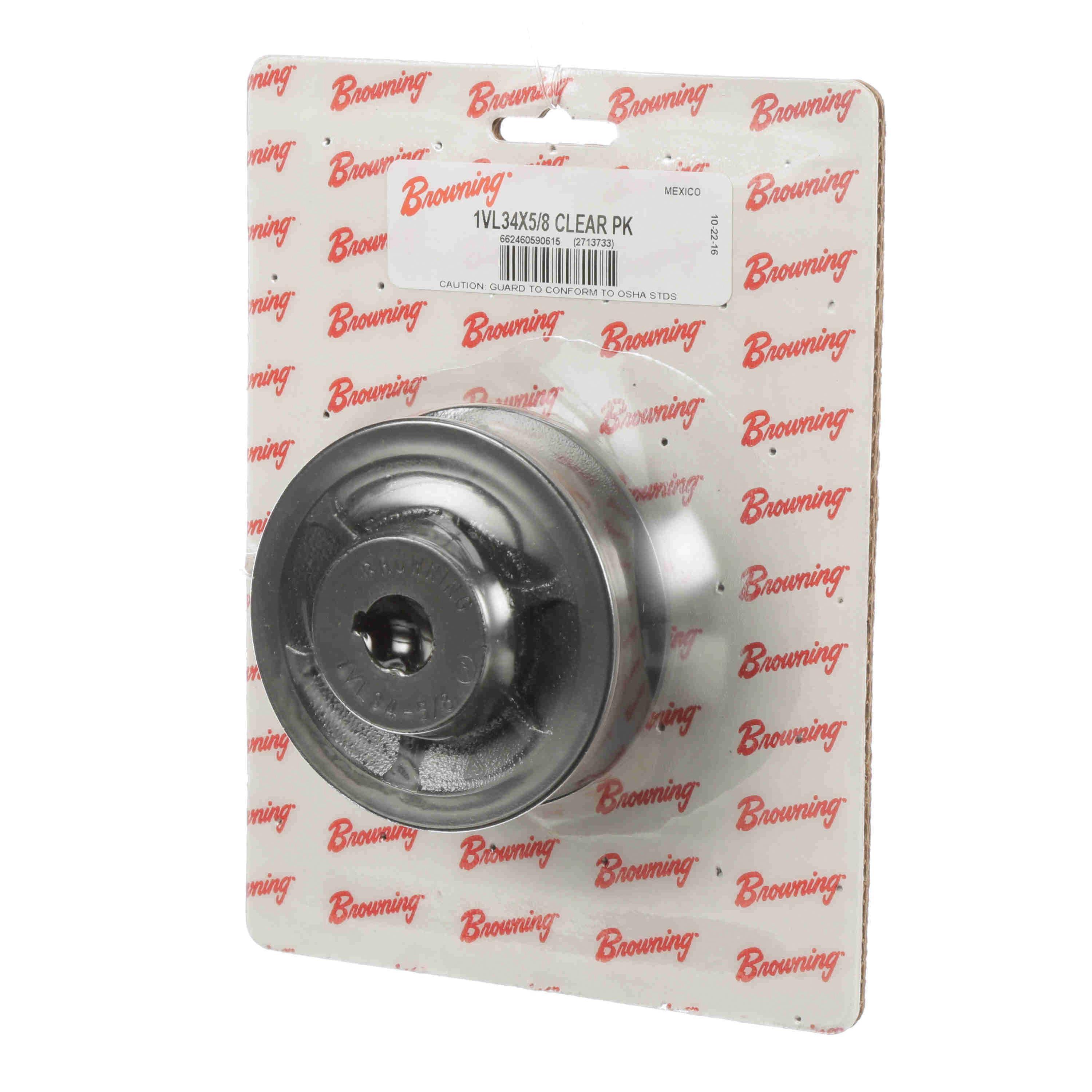

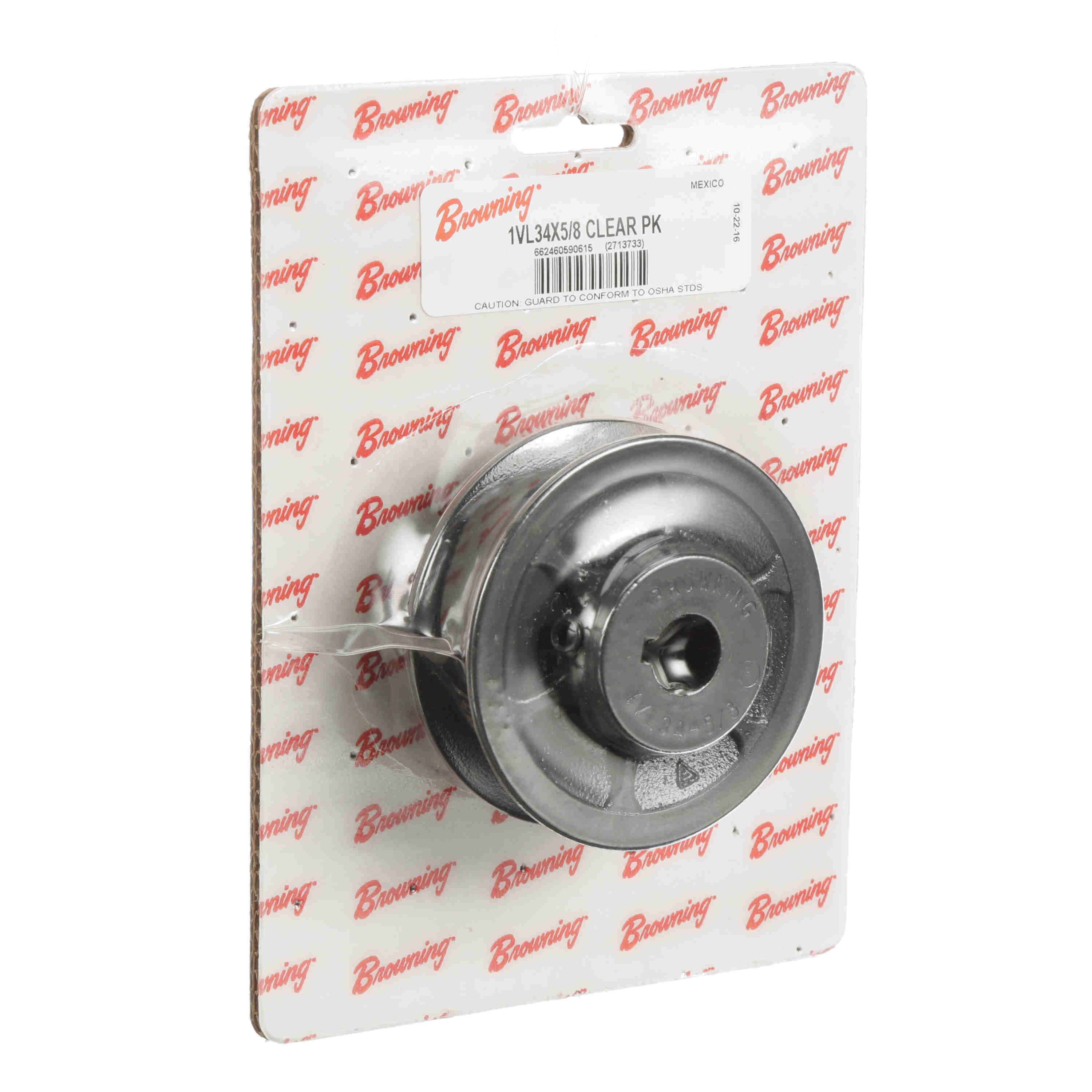

Browning 1VL34X5/8 CLEAR PK Variable Pitch Sheave, 5/8 in Dia Bore, Finished Bore, 3.15 in OD, 1-Groove

Browning® VL Series 1VL34X5/8 CLEAR PK Variable Pitch Sheave, 5/8 in Dia Bore, Finished Bore, 3.15 in OD, 1 -Groove

Browning® VL Series 1VL34X5/8 CLEAR PK Variable Pitch Sheave, 5/8 in Dia Bore, Finished Bore, 3.15 in OD, 1 -Groove 1VL34X5/8 CLEAR PK

Browning® Variable Pitch Sheave, Series: VL Series, Finished Bore, 5/8 in Bore Diameter, 3.15 in OD, 1.7 to 2.5 in Pitch Diameter, 1 Number of Grooves, 21/32 to 31/32 in Face Width, 1-7/8 in Overall Length, Iron, For Use With: 3L Cross Section Belt

Bore Diameter      :      5/8 in
Bore Type      :      Finished
Face Width      :      21/32 to 31/32 in
Material      :      Iron
Number of Grooves      :      1
Outside Diameter      :      3.15 in
Overall Length      :      1-7/8 in
Pitch Diameter      :      1.7 to 2.5 in
Series      :      VL Series
Suitable For Use With      :      3L Cross Section Belt
  • Largest selection in the industry, Browning® offers the widest range of variable speed sheaves in the market today
  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
