Browning® 1045285 1045285

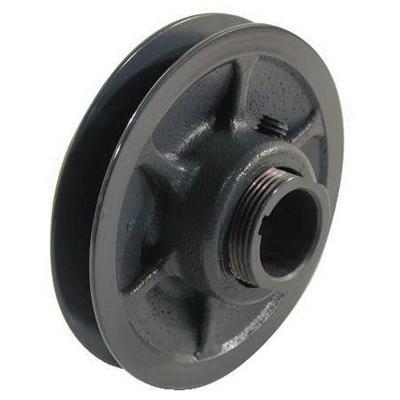

Browning 1VP 1045285 Sheave With Keyway Bore, Finished with Keyway Bore, 3/4 in Dia Bore, 21/32-31/32 in W Face

Browning® 1VP Series 1045285 Sheave With Keyway Bore, Finished with Keyway Bore, 3/4 in Dia Bore

Browning® 1VP Series 1045285 Sheave With Keyway Bore, Finished with Keyway Bore, 3/4 in Dia Bore 1045285

Browning® Sheave, Series: 1VP Series, Finished with Keyway Bore, 3/4 in Bore Diameter, 3L, 4L, 5L, A, B Belt Section Size, 1 Number of Grooves, 1.7 to 2.5 in Pitch Diameter, 1-7/8 in Length Through Bore, 21/32 to 31/32 in Face Width, 3/16 x 3/32 in Keyway Size, Iron, 3.15 in OD x 1.875 in L

Belt Section Size      :      3L, 4L, 5L, A, B
Bore Diameter      :      3/4 in
Bore Type      :      Finished with Keyway
Dimensions      :      3.15 in OD x 1.875 in L
Face Width      :      21/32 to 31/32 in
Keyway Size      :      3/16 x 3/32 in
Length Through Bore      :      1-7/8 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      1.7 to 2.5 in
Series      :      1VP Series
  • Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045517_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045319_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045251_Manual.pdf
