Browning® 1045475 1045475

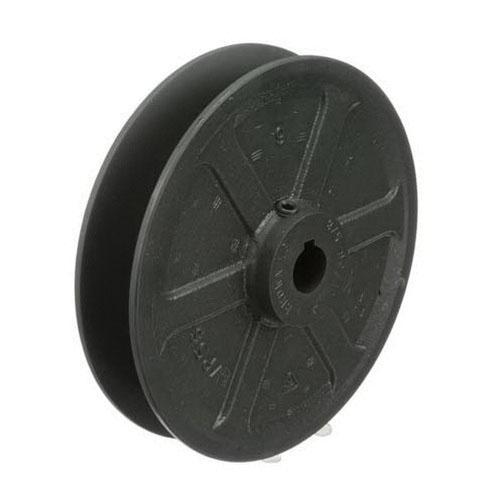

Browning 1VP 1045475 Sheave With Keyway Bore, Finished with Keyway Bore, 5/8 in Dia Bore, 11/16-1-1/16 in W Face

Browning® 1VP Series 1045475 Sheave With Keyway Bore, Finished with Keyway Bore, 5/8 in Dia Bore

Browning® 1VP Series 1045475 Sheave With Keyway Bore, Finished with Keyway Bore, 5/8 in Dia Bore 1045475

Browning® Sheave, Series: 1VP Series, Finished with Keyway Bore, 5/8 in Bore Diameter, 3L, 4L, 5L, 5V, A, B Belt Section Size, 1 Number of Grooves, 4.2 to 5.2 in Pitch Diameter, 1-15/16 in Length Through Bore, 11/16 to 1-1/16 in Face Width, 3/16 x 3/32 in Keyway Size, Iron, 5.35 in OD x 1.9375 in L

Belt Section Size      :      3L, 4L, 5L, 5V, A, B
Bore Diameter      :      5/8 in
Bore Type      :      Finished with Keyway
Dimensions      :      5.35 in OD x 1.9375 in L
Face Width      :      11/16 to 1-1/16 in
Keyway Size      :      3/16 x 3/32 in
Length Through Bore      :      1-15/16 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      4.2 to 5.2 in
Series      :      1VP Series
  • Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
  • pdfInstruction/Installation Manual https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045475_Instruction_Installation_Manual.pdf
