Browning® 1VP34X7/8 CLEAR PK 1VP34X7/8 CLEAR PK

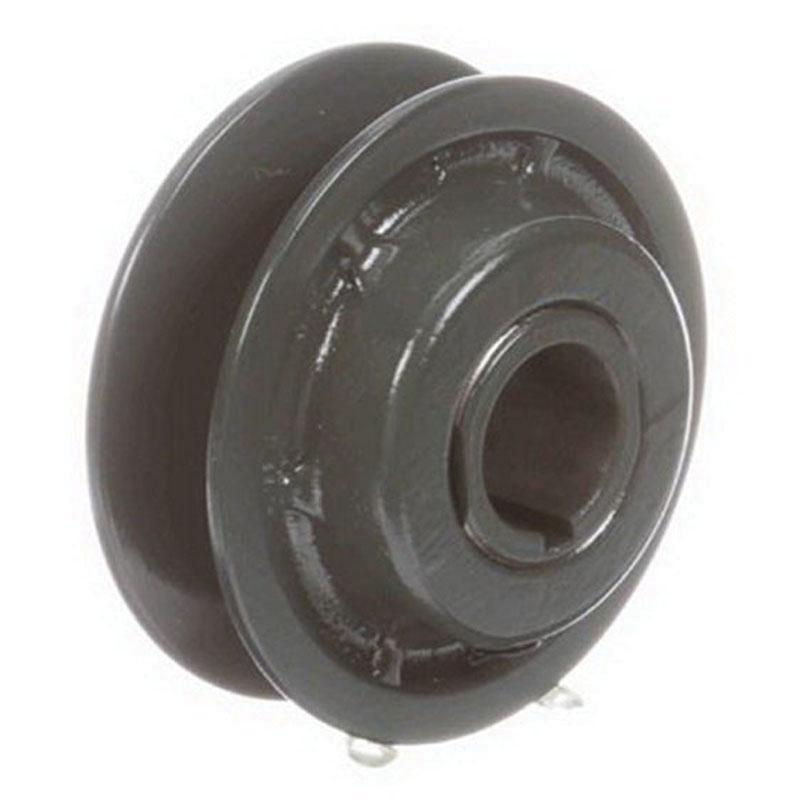

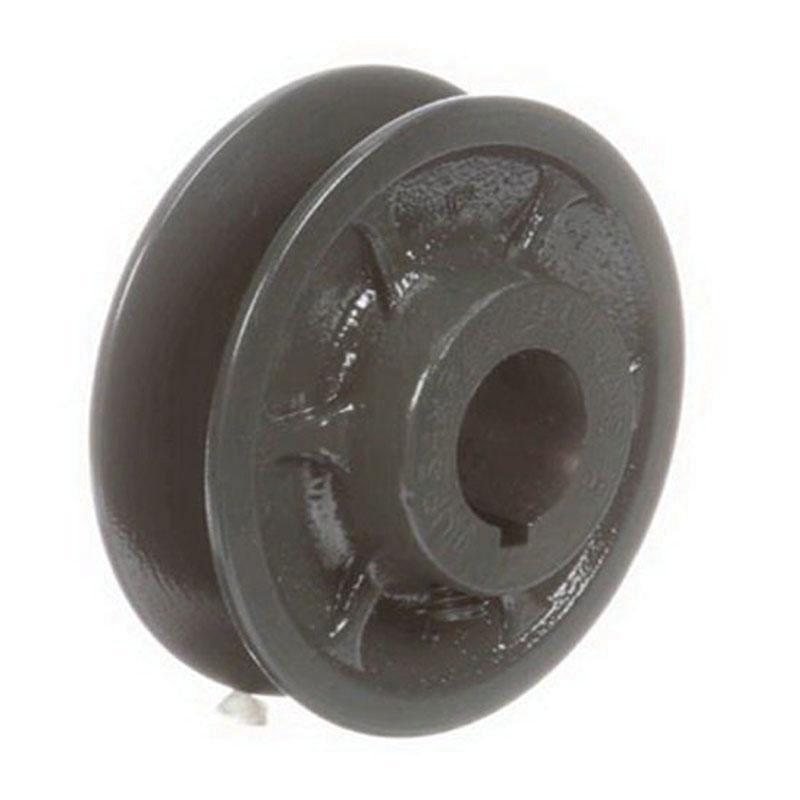

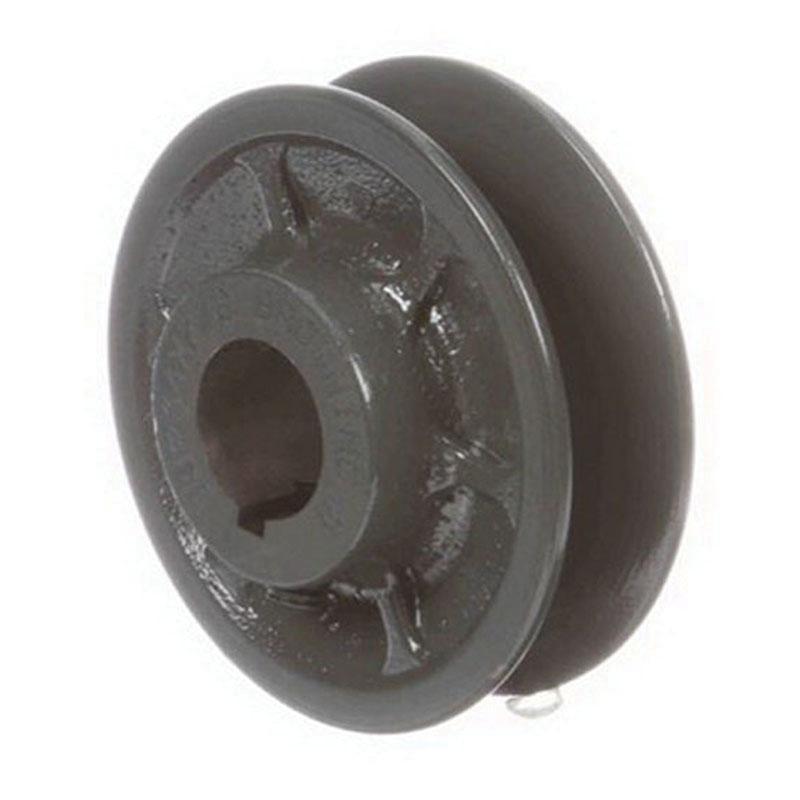

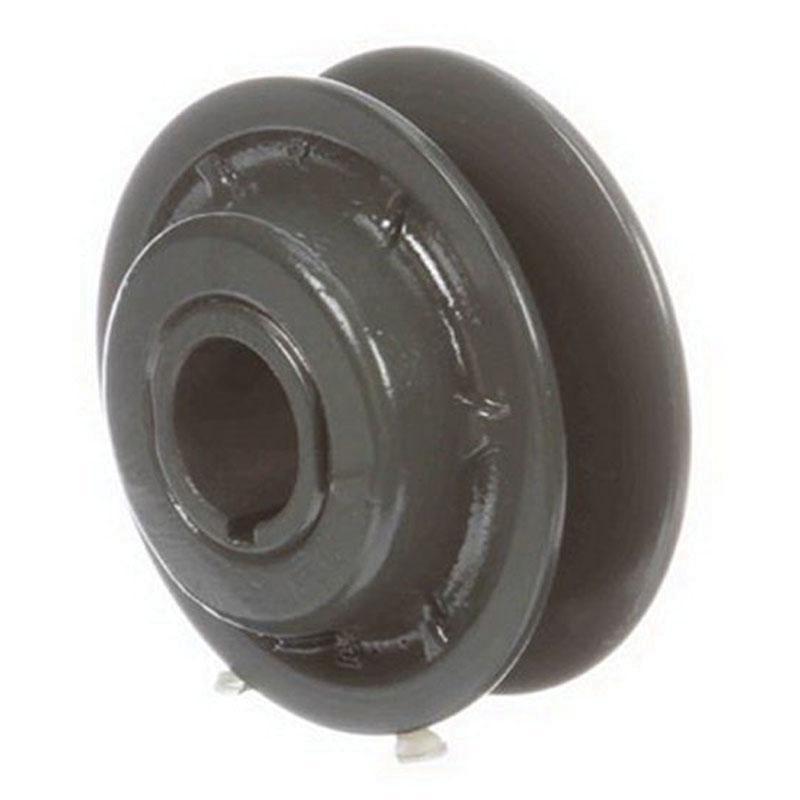

Browning 1VP34X7/8 CLEAR PK FHP Variable Pitch Sheave, Finished Bore, 7/8 in Dia Bore, 1.7 to 2.5 in Dia Pitch

Browning® 1VP34X7/8 CLEAR PK FHP Variable Pitch Sheave, Finished Bore, 7/8 in Dia Bore, 1.7 to 2.5 in Dia Pitch

Browning® 1VP34X7/8 CLEAR PK FHP Variable Pitch Sheave, Finished Bore, 7/8 in Dia Bore, 1.7 to 2.5 in Dia Pitch 1VP34X7/8 CLEAR PK

Browning® FHP Variable Pitch Sheave, Finished Bore, 7/8 in Bore Diameter, 3L, 4L, 5L, A, B Belt Section Size, 1 Number of Grooves, 1.7 to 2.5 in Pitch Diameter, Iron

Belt Section Size      :      3L, 4L, 5L, A, B
Bore Diameter      :      7/8 in
Bore Type      :      Finished
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      1.7 to 2.5 in

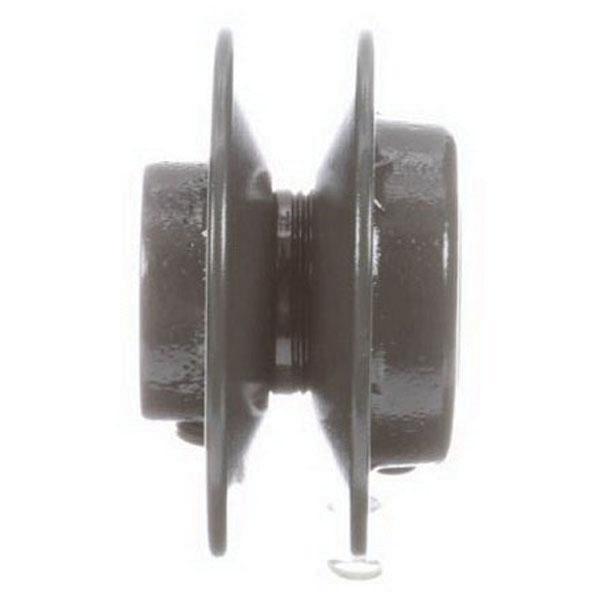

  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
  • Clear pack packaging for end cap display
